🔥 EN131986 ELITE Replacement Inducer Motor – Replaces Reznor 131986

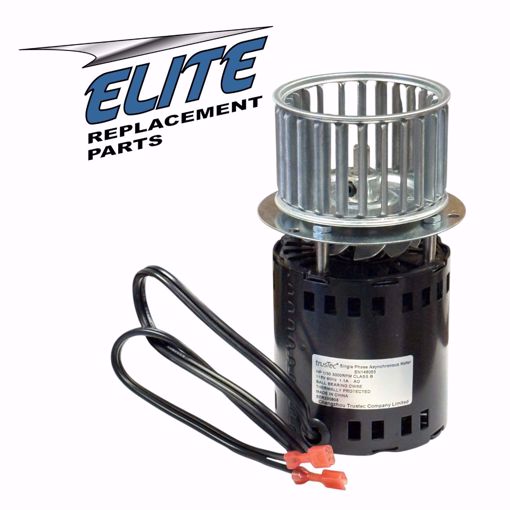

The Elite EN131986 Vent/Inducer Motor Assembly is a complete replacement kit for Reznor part 131986 and Magnetek JA1M213N.
This premium assembly includes the motor, motor plate, fan blade, and blower wheel, making it the most comprehensive replacement option. Designed for long-lasting durability and reliable inducer performance, this 115V, 1/33 HP motor runs at 3300 RPM and is ideal for Reznor FE-125 and BE-125 unit heaters.
🔧 Key Features
-
✅ Direct replacement for Reznor 131986, 97738, Magnetek JA1M213N
-
✅ Includes motor, motor plate, fan blade, and blower wheel
-
✅ Voltage: 115V
-
✅ Horsepower: 1/33 HP
-
✅ Speed: 3300 RPM
-
✅ Designed for dependable vent/inducer performance in larger FE/BE-125 units
⚙️ Technical Specifications
| Spec | Detail |
|---|
| Model |
EN131986 |
| Replaces |
Reznor 131986, Reznor 97738, Magnetek JA1M213N |
| Voltage |
115V |
| Horsepower |
1/33 HP |
| Speed |
3300 RPM |
| Includes |
Motor + Motor Plate + Fan Blade + Blower Wheel |
| Application |
Inducer / Vent Motor Assembly |
| Compatible Reznor Models |
FE-125, BE-125 |
🛠️ Common Symptoms
-
Unit won’t start due to failed inducer motor.
-
Noisy or rattling operation from worn blower wheel or fan blade.
-
Reduced airflow causing burner lockouts or shutdowns.
-
Cracked/damaged blower wheel or fan blade requiring a full kit replacement.
-
Ideal when multiple components (motor + wheel + blade) need replacement at once.
🔄 Cross Reference / Replaces
| Manufacturer | Part Number |
|---|
| Reznor |
131986 |
| Reznor |
97738 |
| Reznor |
Motor Plate 68007 |
| Reznor |
Blower Wheel 131987 |
| Reznor |
Fan Blade 68005 |
| Magnetek |
JA1M213N |
🔎 ELITE Inducer Motor Comparison Chart
| Feature / Spec | EN148055 | EN97727 | EN131986 |
|---|
| Direct Replacement For |
Reznor 148055, Magnetek JA1M213N |
Reznor 97727, 97738, 148055, Magnetek JA1M213N |
Reznor 131986, 97738, Magnetek JA1M213N |
| Includes |
Motor + Motor Plate |
Motor + Motor Plate + Blower Wheel |
Motor + Motor Plate + Fan Blade + Blower Wheel |
| Voltage |
115V |
115V |
115V |
| Horsepower |
1/33 HP |
1/33 HP (replaces 1/30 HP) |
1/33 HP |
| Speed |
3300 RPM |
3000 RPM |
3300 RPM |
| Compatible Models |
FE-25 → FE-125 / BE-25 → BE-125 |
FE-25 → FE-100 / BE-25 → BE-100 |
FE-125 / BE-125 |
| Best Choice If… |
You need a basic motor replacement with mounting plate only. |
You want a drop-in kit with blower wheel included. |
You need a complete kit (motor + blower wheel + fan blade) for larger units. |
✅ Shopper Guidance
-
EN148055 → Standard replacement, use if blower wheel is still good.
-
EN97727 → Best value drop-in kit with blower wheel.
-
EN131986 → Complete assembly for FE-125/BE-125 units or when fan blade + wheel are worn.
❓ Frequently Asked Questions (FAQ)
Q: What motor replaces Reznor 131986?
A: The Elite EN131986 is the direct replacement and includes motor, plate, fan blade, and blower wheel.
Q: Which Reznor heaters use the EN131986?
A: Specifically designed for Reznor FE-125 and BE-125 unit heaters.
Q: What’s included in this kit?
A: Motor, motor plate, fan blade, and blower wheel — everything needed for a complete replacement.
Q: Can this replace Magnetek JA1M213N?
A: Yes, EN131986 is a direct replacement for Magnetek JA1M213N and other cross-references.
