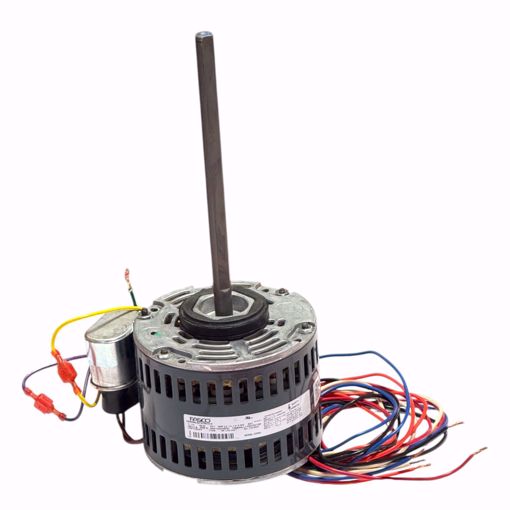

D290 DIVERSITECH 1/10 HP 1050/4 SPD 115 V
- 115V
- 60Hz
- 1 Phase
- 1050 RPM
- 1/10 to 1/40 HP
- 2.2 Amps
- Shaft: 1/2" x 8 1/2" Rotation = Reversible
- Resilient Mount- Bolt Circle - 4.62"
- Motor Length Less Shaft = 3 1/4"
- 4 Speed
Capacitor
- 370VAC
- 50/60Hz
Lead Data
- 18 GA 2/64" INS 105C Thermo. White, Black, Blue, Orange, and Red Line Leads 50"/48" length leads with 56/44" Strips
- Brown and Brown/White cap leads 4"/2" length long with 1/4" flag terminals
REV Lead Data
- 18 GA 2/64" INS 105C Thermo 2 Yellow and 2 Purple 8" / 6" length long with 1/4" pre-insulated Q.C. Terminals
Ground Lead Data
- 18 GA 2/64" INS 105C Thermo. Green/ Yellow 7" / 6" length long with a # 10 serrated ring terminal
