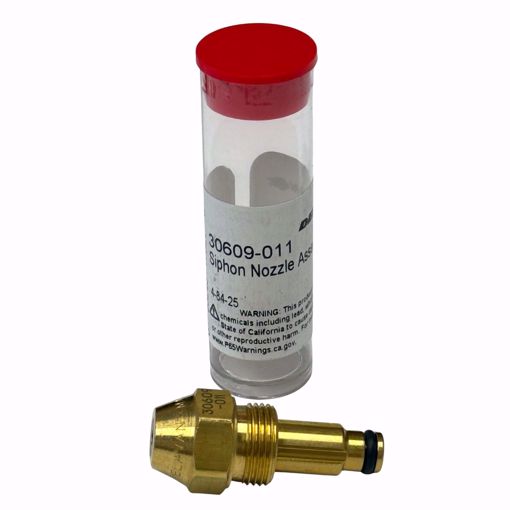

💨 Delavan 30609-011 (SNA 1.00) Siphon Nozzle – Waste Oil Nozzle
The Delavan 30609-011 (SNA 1.00) siphon nozzle produces a solid cone spray pattern with extremely fine fuel droplets at low air pressures and low CFM. Its large passages reduce clogging and allow reliable flow of low-volume fuels. Ideal for waste oil applications, this nozzle ensures efficient combustion and consistent performance.
This nozzle is also compatible with CleanBurn 32002, 57108, and Reznor 157041, and may require an adapter (Part #17147) for some installations.
✅ Key Features
-
✅ Fine Atomization at Low Air Pressure – Produces optimal spray with lower CFM requirements.
-
✅ Solid Cone Spray Pattern – Ensures uniform fuel distribution for efficient combustion.
-
✅ Clog-Free Operation – Large passages reduce the risk of fuel blockage.
-
✅ Versatile Installation – Can operate horizontally or vertically; lift measured from fuel level to nozzle face.
-
✅ Waste Oil Compatible – Works with #2, #4, and other low-viscosity oils.
-
✅ Replacement Compatibility – Same as CleanBurn 32002, 57108, Reznor 157041; adapter may be required (Part #17147).
⚙️ Technical Specifications
| Specification | Details |
|---|
| Nozzle Number / Model |
30609-011 (SNA 1.00) |
| Flow Rate |
1.00 GPH |
| Spray Pattern |
Solid Cone |
| Droplet Size |
Extremely Fine |
| Air Pressure / Fuel Flow |
Low air pressure; optimized for low CFM; flow rates can vary with air & lift |
| Lift Height |
Measure from fuel level to nozzle face (vertical or horizontal mounting) |
| Fuel Compatibility |
#2 and #4 waste oils, other low-viscosity fuels |
| Materials / Construction |
Stainless Steel nozzle parts, Brass Stem, Viton O-ring |
| Orientation |
Horizontal or Vertical |
| Clog-Free Operation |
Large passages allow reliable low-volume flow |
| Replacement / Equivalent |
CleanBurn 32002, 57108, Reznor 157041; adapter may be required (Part #17147) |
| Application |
Waste oil combustion, low-pressure air atomizing, fine droplet spray |
| Installation Notes |
Ensure tight fuel and air connections; compressor should supply 10% more air than minimum requirement; can operate in closed pressurized systems using air for lift and atomization |
⚠️ Common Symptoms Indicating Replacement Needed
-
Inconsistent fuel spray or uneven flame pattern
-
Reduced combustion efficiency or poor flame quality
-
Burner fails to ignite or repeatedly locks out
-
Visible fuel drips or incomplete combustion
-
Nozzle clogging or wear detected during maintenance
-
Abnormal smoke or soot buildup in the combustion chamber
⚠️ Benefits
-
Low Air Pressure Operation – Reduces compressor load requirements.
-
Efficient Atomization – Fine droplets ensure effective fuel combustion.
-
Versatile Fuel Handling – Compatible with multiple low-viscosity waste oils.
-
Reliable Design – Large passages reduce clogging for consistent operation.
🛒 Shopping & Installation Tips
-
Check Replacement Compatibility – Confirm your system uses CleanBurn 32002, 57108, Reznor 157041, or Delavan SNA 1.00.
-
Air Supply Requirements – Ensure your air compressor can provide at least 10% more air than specified for proper lift.
-
Fuel Connections – Tight fuel and air connections are critical for correct lift and spray characteristics.
-
Orientation – Nozzle works in horizontal or vertical positions; measure lift from liquid level to nozzle face when vertical.
-
Adapter Requirements – Some installations may require adapter Part #17147.
-
Maintenance – Regularly inspect for wear or clogging to maintain optimal performance.
❓ FAQ (Frequently Asked Questions)
Q: What fuels can the 30609-011 handle?
A: Works best with #2 and #4 waste oils, low-viscosity fuels, and similar oils.
Q: Can it replace CleanBurn 32002?
A: Yes, the 30609-011 is functionally equivalent to CleanBurn 32002, 57108, and Reznor 157041.
Q: Can it be installed vertically?
A: Yes — lift distance is measured from the fuel level to the end of the nozzle. Horizontal installation is also supported.
Q: What adapter is needed for some installations?
A: Use adapter Part #17147 when required.
