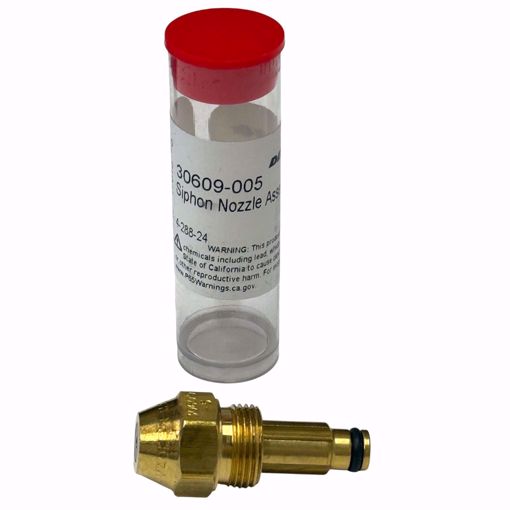

💨 Delavan 30609-005 (SNA .50) Siphon Nozzle – Air Atomizing
The Delavan 30609-005 (SNA .50) siphon nozzle produces a solid cone spray pattern with extremely fine fuel droplets at low air pressures and low CFM. Its large passages reduce clogging and allow reliable flow of low-volume fuels. Ideal for waste oil applications, this nozzle ensures efficient combustion and consistent performance.
This nozzle is also compatible with CleanBurn 32000 and may require an adapter (Part #17147) for installation in some systems.
✅ Key Features
-
✅ Fine Atomization at Low Air Pressure – Produces optimal spray with lower CFM requirements.
-
✅ Solid Cone Spray Pattern – Ensures uniform fuel distribution for efficient combustion.
-
✅ Clog-Free Operation – Large passages reduce the risk of fuel blockage.
-
✅ Versatile Installation – Can operate horizontally or vertically; lift measured from fuel level to nozzle face.
-
✅ Waste Oil Compatible – Works with #2, #4, and other low-viscosity oils.
-
✅ Replacement Compatibility – Same as CleanBurn 32000; adapter may be required (Part #17147).
⚙️ Technical Specifications
| Specification | Details |
|---|
| Nozzle Number / Model |
30609-005 (SNA .50) |
| Flow Rate |
0.50 GPH |
| Spray Pattern |
Solid Cone |
| Droplet Size |
Extremely Fine |
| Air Pressure / Fuel Flow |
Low air pressure; optimized for low CFM; flow rates can vary with air & lift |
| Lift Height |
Measure from fuel level to nozzle face (vertical or horizontal mounting) |
| Fuel Compatibility |
#2 and #4 waste oils, other low-viscosity fuels |
| Materials / Construction |
Stainless Steel nozzle parts, Brass Stem, Viton O-ring |
| Orientation |
Horizontal or Vertical |
| Clog-Free Operation |
Large passages allow reliable low-volume flow |
| Replacement / Equivalent |
CleanBurn 32000; adapter may be required (Part #17147) |
| Application |
Waste oil combustion, low-pressure air atomizing, fine droplet spray |
| Installation Notes |
Ensure tight fuel and air connections; compressor should supply 10% more air than minimum requirement; can operate in closed pressurized systems using air for lift and atomization |
⚠️ Common Symptoms Indicating Replacement Needed
-
Inconsistent fuel spray or uneven flame pattern
-
Reduced combustion efficiency or poor flame quality
-
Burner fails to ignite or repeatedly locks out
-
Visible fuel drips or incomplete combustion
-
Nozzle clogging or wear detected during maintenance
-
Abnormal smoke or soot buildup in the combustion chamber
⚠️ Benefits
-
Low Air Pressure Operation – Reduces compressor load requirements.
-
Efficient Atomization – Fine droplets ensure effective fuel combustion.
-
Versatile Fuel Handling – Compatible with multiple low-viscosity waste oils.
-
Reliable Design – Large passages reduce clogging for consistent operation.
🛒 Shopping & Installation Tips
-
Check Replacement Compatibility – Confirm your system uses Delavan SNA .50 or CleanBurn 32000.
-
Air Supply Requirements – Ensure your air compressor can provide at least 10% more air than specified for proper lift.
-
Fuel Connections – Tight fuel and air connections are critical for correct lift and spray characteristics.
-
Orientation – Nozzle works in horizontal or vertical positions; measure lift from liquid level to nozzle face when vertical.
-
Adapter Requirements – Some installations may require adapter Part #17147.
-
Maintenance – Regularly inspect for wear or clogging to maintain optimal performance.
❓ FAQ (Frequently Asked Questions)
Q: What fuels can the 30609-005 handle?
A: Works best with #2 and #4 waste oils, low-viscosity fuels, and similar oils.
Q: Can it replace CleanBurn 32000?
A: Yes, the 30609-005 is functionally equivalent to CleanBurn 32000.
Q: Can it be installed vertically?
A: Yes — lift distance is measured from the fuel level to the end of the nozzle. Horizontal installation is also supported.
Q: What adapter is needed for some installations?
A: Use adapter Part #17147 when required.
