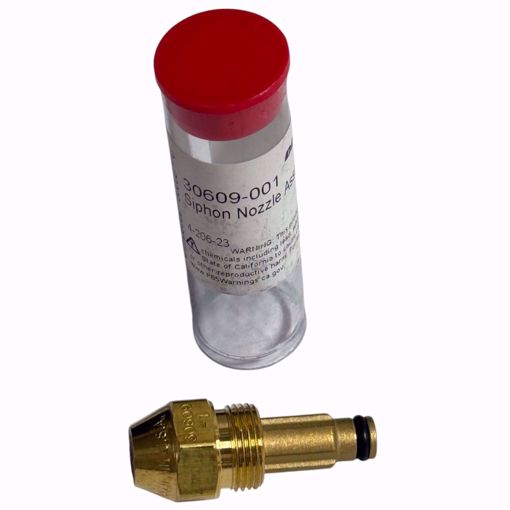

30609-001 Delavan SNA 0.10 Siphon Nozzle – Waste Oil Nozzle
Product Overview
The Delavan 30609-001 SNA 0.10 GPH Siphon Nozzle is specifically engineered for waste oil applications.
It produces a solid cone spray pattern with extremely fine particles at low air pressures and low CFM, ensuring efficient combustion and clog-free operation.
Ideal for both horizontal and vertical installations, it delivers reliable performance for low-volume fuel delivery systems.
Key Features ✅
-
✅ Produces solid cone spray pattern for uniform fuel distribution
-
✅ Extremely fine particle size at low air pressures and CFM
-
✅ Clog-free operation due to relatively large passages
-
✅ Works in horizontal or vertical positions
-
✅ Suitable for waste oil applications
-
✅ Can be operated in closed pressurized systems with air-assisted fuel lift
-
✅ Adapter sold separately (Part Number 17147)
Technical Specifications
| Feature | Specification |
|---|
| Model |
30609-001 (SNA 0.10) |
| Flow Rate |
0.10 GPH |
| Spray Pattern |
Solid Cone |
| Application |
Waste Oil |
| Mounting |
Horizontal or Vertical |
| Lift |
Adjustable, measured from liquid level to nozzle tip |
| Special Notes |
Large passages for clog-free operation |
Shopping Tips 🛒
-
✅ Ensure you select the correct SNA 0.10 model for your waste oil system
-
✅ Check compatibility with your burner type and flow requirements
-
✅ Purchase the adapter separately if needed (Part Number 17147)
-
✅ Keep a spare nozzle on hand to reduce downtime in case of wear or damage
-
✅ Ideal for both residential and commercial waste oil burners
Common Symptoms ⚠️
-
Uneven or incomplete combustion
-
Poor atomization or large droplets
-
Clogging in smaller passage nozzles (not for this model, designed to be clog-free)
Frequently Asked Questions ❓
Q: Can this nozzle be used for oil other than waste oil?
A: It is specifically designed for waste oil, but may work with other oils if particle size and flow rate requirements are compatible.
Q: Is an adapter included?
A: No, adapter is sold separately using Part Number 17147.
Q: Can it be mounted vertically?
A: Yes, vertical mounting is supported, and the lift distance is measured from the liquid surface to the nozzle tip.
