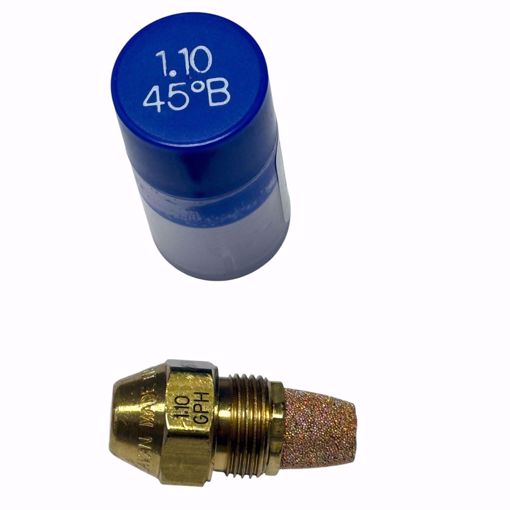

Delavan 00110-45B1 Oil Burner Nozzle – 1.10 GPH, 45° B Solid Cone with Sintered Filter
The Delavan 00110-45B1 is a high-quality 1.10 GPH oil burner nozzle with a 45° B solid cone spray pattern and integrated sintered filter. Designed for reliable and uniform fuel atomization, this nozzle ensures smooth ignition, stable flame, and optimal burner performance in a variety of heating applications.
Type B Solid Cone nozzles produce a spray that distributes droplets uniformly throughout the pattern. At higher flow rates, the spray may become progressively hollow, making them ideal for larger burners, heavy air patterns, or longer fires.
✅ Key Features
-
✅ Flow Rate: 1.10 GPH
-
✅ Spray Angle: 45°
-
✅ Spray Pattern: B Solid Cone – even droplet distribution
-
✅ Integrated sintered filter prevents clogging and ensures consistent performance
-
✅ Ideal for larger burners or applications with heavy center air patterns
-
✅ Smooth ignition and stable flame for efficient combustion
📊 Specifications
| Parameter | Detail |
|---|
| Part Number |
00110-45B1 |
| Flow Rate |
1.10 GPH |
| Spray Angle |
45° |
| Spray Pattern |
B Solid Cone |
| Filter |
Sintered, built-in |
| Type |
Oil Burner Nozzle |
| Application |
Residential, Commercial, Industrial Burners |
| Notes |
Solid cone spray becomes slightly hollow at higher flow rates (>8 GPH) |
⚠️ Common Symptoms Indicating Replacement
-
Irregular or unstable flame
-
Burner fails to ignite properly
-
Soot buildup or smoky combustion
-
Clogged nozzle filter or restricted fuel flow
❓ Frequently Asked Questions (FAQ)
Q: What does the “B” spray pattern mean?
A: “B” indicates a Solid Cone spray pattern, which distributes fuel droplets evenly across the flame for smooth ignition.
Q: What is the function of the sintered filter?
A: The sintered filter prevents debris from entering the burner, maintaining consistent spray and preventing clogging.
Q: Can this nozzle be used in larger burners?
A: Yes, it is designed to perform well in burners above 2–3 GPH, providing stable flame and smooth ignition.
Q: How do I choose the right spray pattern?
A: Check your burner’s specifications:
-
A = Hollow Cone
-
B = Solid Cone
-
W = Semi-Solid Cone
🛒 Shopping Tips
-
Always match the flow rate and spray angle to your burner’s requirements.
-
Inspect and replace nozzles if there is soot buildup, poor ignition, or flame instability.
-
Ensure the spray pattern code (A, B, W) matches your application for optimal performance.
-
Clean or replace the sintered filter as needed to prevent blockages.
