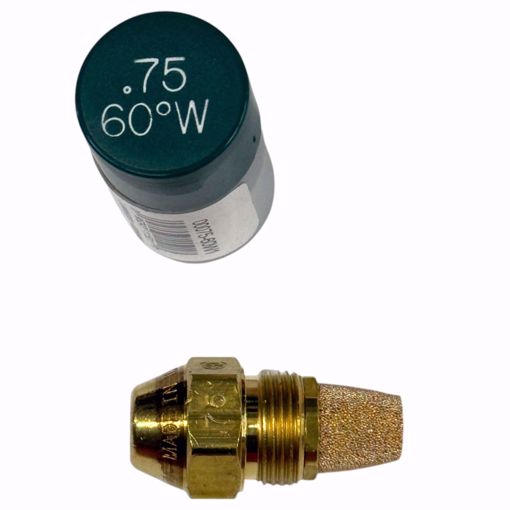

Delavan 00075-60W1 – 0.75 GPH 60° W Semi-Solid Cone Oil Burner Nozzle with Sintered Filter
Product Overview
The Delavan 00075-60W1 is a high-quality 0.75 GPH, 60° W semi-solid cone oil burner nozzle designed for residential and light commercial oil-fired heating systems. Equipped with a sintered stainless steel filter, this nozzle ensures reliable fuel atomization, cleaner combustion, and longer service life.
The W (semi-solid) spray pattern provides a balanced flame, ideal for burners that require a hybrid between hollow and solid cone spray characteristics.
✅ Key Features
-
✔️ 0.75 GPH fuel flow rate for precise fuel delivery
-
✔️ 60° spray angle for optimized flame coverage
-
✔️ W – Semi-solid cone spray pattern for stable, versatile combustion
-
✔️ Sintered filter for superior debris protection and longer nozzle life
-
✔️ Reduces soot buildup and improves burner efficiency
-
✔️ Precision-machined for consistent atomization
-
✔️ OEM-quality replacement nozzle for many residential and light commercial burners
📊 Specifications
| Specification | Details |
|---|
| Part Number |
00075-60W1 |
| Manufacturer |
Delavan |
| Flow Rate |
0.75 GPH |
| Spray Angle |
60° |
| Spray Pattern |
W – Semi-Solid Cone |
| Filter |
Sintered stainless steel |
| Fuel Type |
No. 1 & No. 2 Fuel Oil |
| Application |
Residential / Light Commercial Oil Burners |
| Construction |
Brass with hardened steel internal components |
⚠️ Common Symptoms Indicating Replacement
-
Sooty or smoky burner operation
-
Delayed ignition or hard start
-
Unstable flame or burner rumbling
-
Increased fuel consumption
-
Burner lockouts or intermittent operation
❓ Frequently Asked Questions (FAQ)
Q: What does the “W” spray pattern mean?
A: “W” indicates a semi-solid cone, offering a hybrid flame suitable for a wide range of burner designs.
Q: Why does this nozzle have a sintered filter?
A: The filter prevents debris from clogging the nozzle, ensuring consistent fuel delivery and longer nozzle life.
Q: How often should I replace my nozzle?
A: Typically once per heating season, or sooner if combustion issues arise.
Q: Can I change the flow rate or spray angle?
A: Only use the specifications recommended by your burner manufacturer—incorrect nozzles can reduce efficiency and damage the burner.
🛒 Shopping Tips
-
🧭 Always match GPH and spray angle to the burner’s specifications.
-
🔄 Spray Pattern Codes:
-
A = Hollow Cone
-
B = Solid Cone
-
W = Semi-Solid Cone
-
✔️ A worn or incorrect nozzle is the #1 cause of burner performance problems.
-
✔️ Replacing the nozzle annually is inexpensive and highly effective.
