003N6252 DANFOSS COMPLETE AVTB VALVE

Manufacturer: Danfoss
003N6252 DANFOSS COMPLETE AVTB VALVE - Model# AVTB 15 - 1/2" Connection FNPT - 6.6" Capillary Tube Length - Max Sensor Temp 190 F (90 C) - Temp Range 70 to 140 F (20-60 C) - Connection Type Internal Thread - Differential Pressure Range (BAR) 10 BAR - 2 Ports - Pressure Nominal (BAR) 16 BAR Features: • For water • Self-acting • Closes on rising temperature • Can be fitted in the supply or return • Pressure range PN 16 (232 psi/16 bar) AVTB is a direct acting thermostatic temperature controller used to regulate the water temperature in hot water tanks, heat exchangers, oil preheaters, etc. The nonelectric thermostatic controller closes on rising temperature. The thermostatic controller is a three-part assembly consisting of the valve body, the thermostatic element and an adjustment assembly
SKU: DANFOSS:003N6252
Product Availability: Out of stock
$599.83
This product must be purchased in increments of 1
i h

003N6252 DANFOSS COMPLETE AVTB VALVE

- Model# AVTB 15
- 1/2" Connection FNPT
- 6.6" Capillary Tube Length
- Max Sensor Temp 190 F (90 C)
- Temp Range 70 to 140 F (20-60 C)
- Connection Type Internal Thread
- Differential Pressure Range (BAR) 10 BAR
- 2 Ports
- Pressure Nominal (BAR) 16 BAR

Features:
• For water
• Self-acting
• Closes on rising temperature
• Can be fitted in the supply or return
• Pressure range PN 16 (232 psi/16 bar)


AVTB is a direct acting thermostatic temperature controller used to regulate the water temperature in hot water tanks, heat exchangers, oil preheaters, etc. The nonelectric thermostatic controller closes on rising temperature.

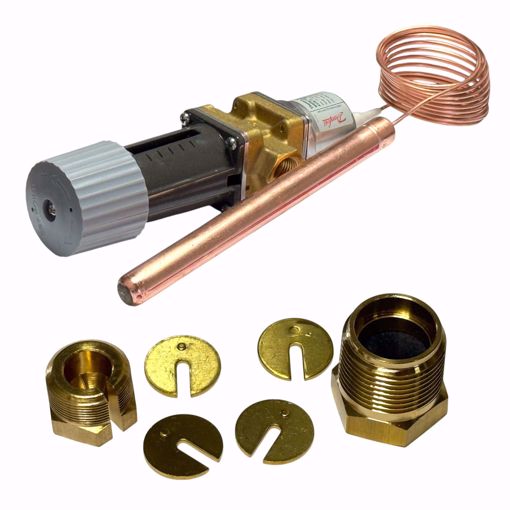

The thermostatic controller is a three-part assembly consisting of the valve body, the thermostatic element and an adjustment assembly

Products specifications
Manufacturer Danfoss
