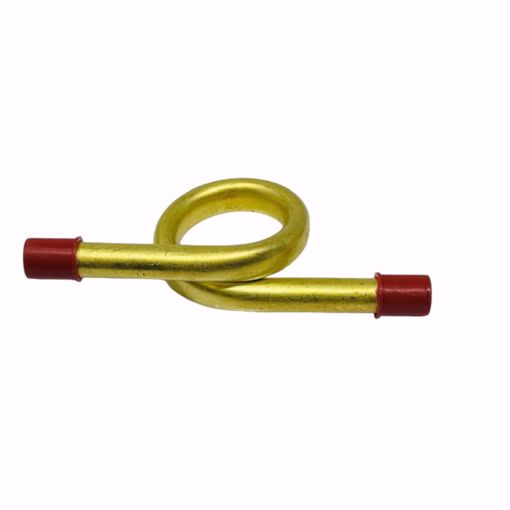

PTB-180 Crown Pigtail Syphon – Brass 180° with 1/4″ (M) IPS Ends
The PTB-180 Crown Pigtail Syphon is a high-quality brass 180° pigtail syphon designed for use in pressure and temperature gauge installations. Its 180° bend and 1/4″ male IPS ends make it ideal for protecting gauges from steam, high temperatures, and pulsating fluids, extending gauge life and improving measurement accuracy.
Constructed from durable brass, the PTB-180 provides reliable performance in industrial, commercial, and mechanical applications.
Key Features ✅
-
✅ Brass construction – corrosion-resistant and durable
-
✅ 180° pigtail design – protects gauges from steam and high temperatures
-
✅ 1/4″ (M) IPS ends – standard connection for easy installation
-
✅ Prevents gauge damage from sudden pressure changes or heat
-
✅ Compatible with pressure and temperature gauges in various applications
Technical Specifications 📝
| Specification | Value |
|---|
| Part Number |
PTB-180 |
| Material |
Brass |
| Bend Angle |
180° |
| Connection Size |
1/4″ Male IPS |
| Application |
Pigtail syphon for pressure/temperature gauge protection |
| Function |
Shields gauges from steam, heat, and pulsating fluids |
Common Applications ⚡
-
Steam boiler pressure and temperature gauges
-
Industrial process instrumentation
-
HVAC systems
-
Commercial and mechanical equipment requiring gauge protection
Common Symptoms Solved ⚡
-
❌ Gauge failure due to direct steam exposure
-
❌ Rapid temperature or pressure spikes damaging gauge components
-
❌ Leaks from poor connection or inadequate protection
-
❌ Inaccurate readings due to pulsating fluids
Shopping Tips 🛒
-
✅ Check connection size – Ensure your gauge uses 1/4″ male IPS ends.
-
✅ Confirm bend orientation – PTB-180 is 180°, ideal for typical gauge piping layouts.
-
✅ Use with compatible gauges – Protect pressure and temperature gauges from damage.
-
✅ Inspect installation – Proper alignment ensures maximum protection and performance.
-
✅ Brass durability – Suitable for steam, water, and many industrial fluids.
Frequently Asked Questions (FAQ) ❓
Q: What is a pigtail syphon used for?
✅ A pigtail syphon protects gauges from steam, high temperatures, and pulsating fluids, increasing gauge longevity and accuracy.
Q: What size connections does the PTB-180 use?
✅ It has 1/4″ Male IPS ends.
Q: What is the bend angle of this syphon?
✅ 180° – suitable for standard installations requiring a full U-shaped loop.
Q: Can it be used with steam systems?
✅ ✅ Yes, brass construction allows use in steam and hot water systems, protecting gauges from direct heat.
Q: Is this compatible with all gauges?
✅ It works with most pressure and temperature gauges that accept 1/4″ IPS male connections.
