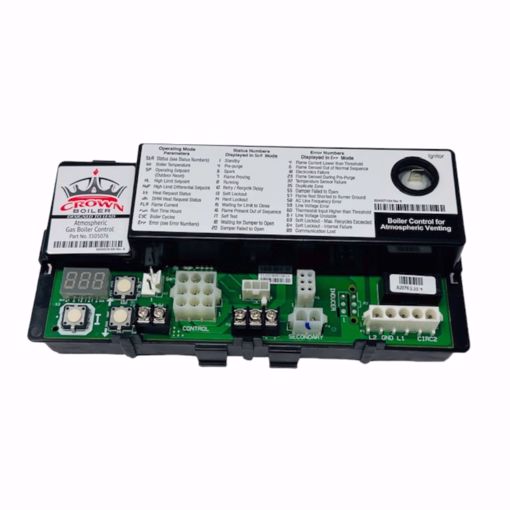

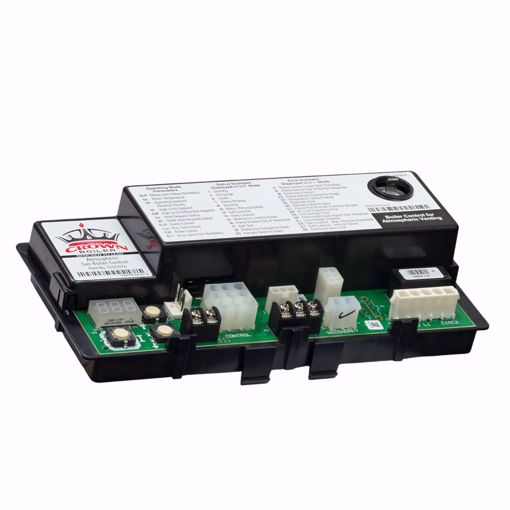

Crown Boiler 3505076 – Honeywell S9361A2076 Control Board for AWR Series Boilers
Product Overview
The Crown Boiler 3505076 Honeywell S9361A2076 Control Board is a high-quality replacement control board designed for Crown AWR Series atmospheric gas-fired hot water boilers. It ensures precise and reliable operation, maintaining set point temperatures between 140°F and 220°F. Compatible with multiple AWR models, this control board helps keep your boiler running safely and efficiently.
✅ Key Features
-
✔️ Replacement control board for Crown AWR Series atmospheric boilers
-
✔️ Compatible Models: AWR038, AWR070, AWR105, AWR140, AWR175, AWR210, AWR245, AWR280
-
✔️ Set point range: 140°F to 220°F for accurate temperature control
-
✔️ Voltage: 24 VAC, 0.2 Amps, 60 Hz
-
✔️ Reliable Honeywell quality for long-lasting performance
-
✔️ Ensures safe and efficient boiler operation
-
✔️ Direct replacement for original S9361A2076
📊 Specifications
| Specification | Details |
|---|
| Part Number |
3505076 |
| Manufacturer |
Honeywell |
| Model Number |
S9361A2076 |
| Compatible Boiler Series |
Crown AWR Series |
| Compatible Models |
AWR038, AWR070, AWR105, AWR140, AWR175, AWR210, AWR245, AWR280 |
| Set Point Range |
140°F – 220°F |
| Voltage |
24 VAC |
| Current |
0.2 Amps |
| Frequency |
60 Hz |
| Application |
Gas-fired, natural draft hot water boilers |
| Replacement |
Direct replacement for Honeywell S9361A2076 |
⚠️ Common Symptoms Indicating Replacement
-
Boiler fails to ignite or start properly
-
Inconsistent or inaccurate temperature control
-
Boiler cycles on and off frequently
-
No response to thermostat adjustments
-
Safety lockouts or error codes displayed on boiler
-
Visible damage or burned components on existing control board
❓ Frequently Asked Questions (FAQ)
Q: Which boilers is this control board compatible with?
A: It works with Crown AWR Series atmospheric gas-fired hot water boilers, including AWR038, AWR070, AWR105, AWR140, AWR175, AWR210, AWR245, and AWR280.
Q: What is the set point range?
A: 140°F to 220°F, allowing precise control of water temperature.
Q: Can I install this myself?
A: If you are comfortable with electrical and boiler systems, it can be installed by a qualified technician. Always turn off power and gas supply before replacing.
Q: Does this replace the original Honeywell S9361A2076?
A: Yes, this is a direct replacement.
Q: What voltage does it require?
A: 24 VAC, 0.2 Amps, 60 Hz.
🛒 Shopping Tips
-
Confirm your boiler model and series before ordering
-
Always turn off power and gas before replacing the control board
-
Keep the original board for reference during installation
-
Ideal for maintaining safe, reliable, and efficient boiler operation
-
Suitable for both residential and light commercial AWR boilers
