40275 CROWN IGNITION KIT

Crown 40275 PRO Ignition Kit

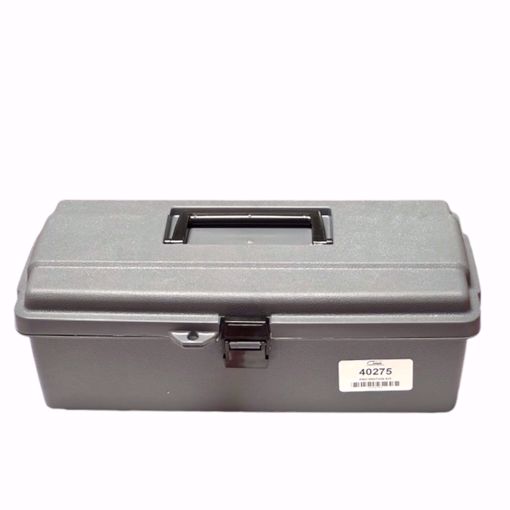

Be prepared for any burner service with the Crown 40275 PRO Ignition Kit. Packed with a wide selection of electrodes, terminals, and accessories, this kit provides everything a technician needs to install, replace, or troubleshoot ignition systems efficiently. Housed in a durable carrying case, it’s the ultimate on-the-go solution for your shop or service calls.

✅ Key Features

• ✅ Comprehensive ignition kit with terminals, electrodes, and tools for most burners

• ✅ Durable plastic carrying case for easy transport and organized storage

• ✅ Includes standard and OEM electrodes from Beckett, Carlin, and Wayne

• ✅ Variety of cage, spring, ring, and stud terminals for flexibility

• ✅ Comes with special tools including igniter tip bending set and electrode setting gauge

• ✅ Includes buss bars, test jumpers, cable, and troubleshooting chart

• ✅ Replaces Westwood E5-1897, 1897, E5-1897-C, 1897-C

• ✅ Ideal for service professionals and technicians for quick, on-site burner repairs

📦 Kit Contents

Terminals and Hardware

• 10 ea. 50000 Cage terminal

• 10 ea. 50100 Spring terminal

• 10 ea. 50200 Ring terminal

• 10 ea. 50450 Right angle cage terminal

• 10 ea. 50600 Stud ferrule

• 10 ea. 50760 Hex base stud 6-32 thread

• 10 ea. 50700 Hex base stud 10-32 thread

• 5 ea. 50860 Hollow stud 6-32 thread

• 5 ea. 50800 Hollow stud 10-32 thread

• 10 ea. 50900 Eyelet

• 10 ea. 60018 Flat hex nut 6-32 thread

• 10 ea. 60022 Flat hex nut 10-32 thread

Standard Electrodes

• 4 ea. 01041, 2 ea. 03050, 2 ea. 04040, 4 ea. 05040, 4 ea. 05050, 2 ea. 05060, 2 ea. 06040, 2 ea. 06042, 2 ea. 06050, 2 ea. 06060

Special OEM Electrodes

• 2 ea. 20410 Beckett, 2 ea. 20780 Carlin, 2 ea. 28022 Wayne

Special Tools

• 1 ea. 40430 Igniter tip bending set

• 1 ea. 40445 Electrode setting gauge

Buss Bars

• 2 ea. 40315 Round buss bar – 12"

• 2 ea. 40320 Flat buss bar – 12"

Test Jumpers, Cable, and Chart

• 1 ea. 40630 Set of booted test leads

• 1 ea. 5 ft. GTO-15 ignition cable

• 1 ea. Troubleshooting chart

⚠️ Common Symptoms

This kit is ideal for troubleshooting or repairing ignition issues such as:

• Burner failing to ignite or stay lit

• Erratic flame sensing or electrode misalignment

• Damaged or worn electrodes or terminals

• Electrical connection failures in ignition circuits

❓ Frequently Asked Questions (FAQ)

Q: Which burners is this kit compatible with?
A: The kit includes parts compatible with most common oil burners and OEM-specific electrodes for Beckett, Carlin, and Wayne systems.

Q: Is this kit portable?
A: Yes, it comes in a durable plastic carrying case for easy transport to job sites.

Q: Can it replace older kits?
A: Yes, it replaces Westwood E5-1897, 1897, E5-1897-C, and 1897-C.

Q: Does it include tools for electrode adjustment?
A: Yes, it includes an igniter tip bending set and electrode setting gauge for precise installation.

🛒 Shopping Tips

• Keep this kit in your service vehicle for fast, on-site burner repairs

• Organize the terminals and electrodes by type for quicker access

• Use the included troubleshooting chart to diagnose ignition issues efficiently

• Verify OEM electrode compatibility for specific burner models
