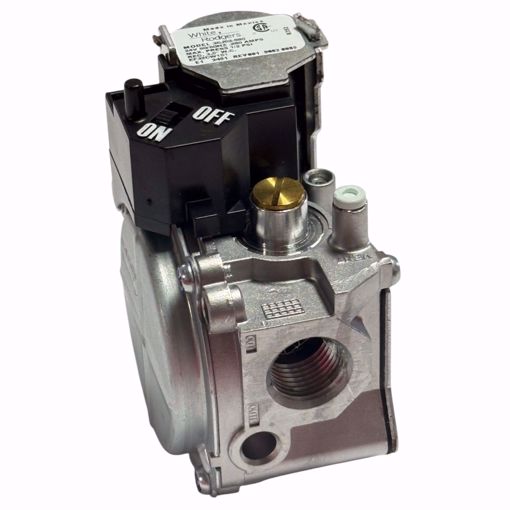

EF32CW1 CARRIER 24V 3.5WC NAT 1/2 GAS VALVE
White Rodgers
- Model # 36J52-580
- 24V
- 50/60Hz
- .280 Amps
- Max Press 1/2" PSI
- Inlet/Outlet Diameter: 1/2" NPT
- Pressure Regulator Factory Set 3.5" W.C
- Mounting any position
The 36G/J22, 36G/J23, 36G/J24 and 36G/J52 combination gas valves are designed for direct spark ignition (DSI) and hot surface ignition (HSI) system applications. These valves
are equipped with redundant and main solenoid valves that control gas flow to the main burners, a pressure regulator and a two-position on/off switch for regulation and electrical
shut off of the solenoid valves. The 36G/J23, 36G/J24 and 36G/J52 are also equipped with a slow-opening pressure regulator for softer lighting characteristics.
