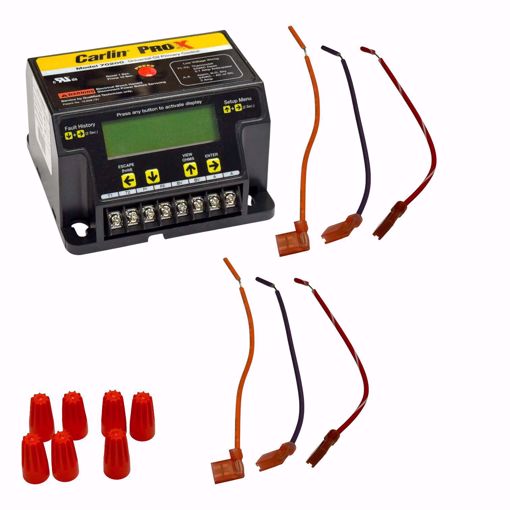

70200S CARLIN Pro-X 70200 Universal Primary Control – 120V, 60Hz

The Carlin Pro-X 70200 Universal Primary Control is the ultimate universal oil primary control replacement. Designed for easy setup, troubleshooting, and compatibility, it replaces virtually any oil primary control from Carlin, Beckett, Honeywell, and ICM Controls. Featuring a large LCD display, built-in diagnostics, alarm contacts, and advanced programmability, the 70200 Pro-X makes burner servicing and performance optimization simple and reliable.

✅ Key Features & Benefits

• ✔️ Universal Replacement – Works with Carlin, Beckett, Honeywell, and ICM Controls

• ✔️ Smart Ignition – Patented technology for maximum efficiency with all fuel blends (including B100)

• ✔️ Large LCD Display – Clear visibility with no special tools required

• ✔️ Built-In Diagnostics – Displays Last Fault Alert even after homeowner resets control

• ✔️ Programmable Settings – Fully customizable operation

• ✔️ 32-Cycle Fault History – Keeps detailed service records

• ✔️ Alarm Contacts – For quick alerts during system faults

• ✔️ Communications Capable – Remote monitoring & alerts supported

• ✔️ Blocked Vent Protection – With low-voltage blocked vent contacts

• ✔️ Recessed Wiring Terminals – Safer wiring with more space in j-box

• ✔️ Pump Prime & CAD Cell Reading – Onboard prime and OHMS measurement

📊 Technical Specifications

🔄 Replaces

• Beckett: 7505A-000, 7505P-1515, 7505B-1500

• Honeywell: RA116, RA117, R7184A, R7184B, R7184P, R7184U, R7284, R8184G, R8184P, R8184M (with Carlin Kool Kit)

• Carlin: 40200, 42230, 48245, 50200, 60200

• ICM Controls: ICM1501, ICM1502, ICM1503

🛒 Shopping Tips

• ✔️ Choose Universal for Flexibility – One control replaces multiple part numbers, minimizing inventory.

• ✔️ LCD Diagnostics Save Time – Clear fault codes make service faster and more accurate.

• ✔️ Future-Ready – Built-in communication port supports remote monitoring upgrades.

• ✔️ Service Friendly – Recessed terminals and pump prime simplify installs.

• ✔️ Check Compatibility – Works with most modern oil burners from major brands.

❓ Frequently Asked Questions (FAQ)

Q1: Is the Carlin Pro-X 70200 a universal replacement?
Yes, it replaces virtually all oil primary controls from Carlin, Beckett, Honeywell, and ICM.

Q2: What makes this control “smart”?
It features patented Smart Ignition, programmable settings, fault history storage, and communication capability for advanced troubleshooting.

Q3: Can it work with biodiesel fuels?
Yes, it is optimized for all fuel blends, including B100 biodiesel.

Q4: How does the Last Fault Alert help?
It shows the cause of the most recent burner fault even if the control was reset, saving valuable troubleshooting time.

Q5: Do I need special tools to read diagnostics?
No, all information is clearly shown on the on-board LCD screen.
