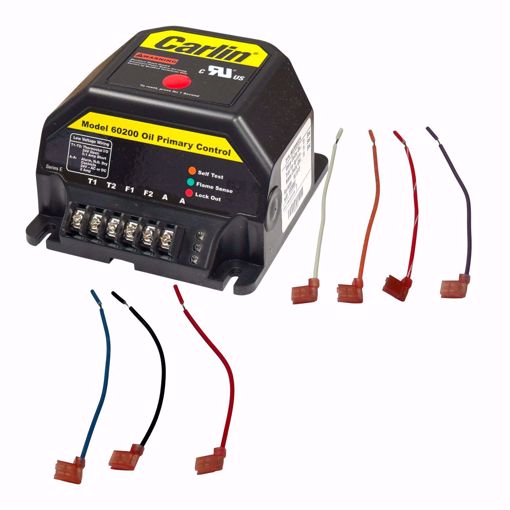

Carlin 6020002S 15 Pre/15 TFI/15 Post. Interrupted Duty Oil Burner Primary Control With Alarm Contacts Power Input (Red/White Wire) 120 vac, 60 Hz, 9 VA
Limit Circuit Input (Black Wire) 120 vac, 60 Hz Motor Load 10 FLA, 60 LRA Ignitor Load 120 vac, 60 Hz, 500 VA Valve Load 120 vac, 60 Hz, 0.3 Amps Alarm Contacts 24 V, AC/DC, 2 Amps Operating Temperature Limits + 32°F to + 140°F Storage Temperature Limits -40°F to +185°F Thermostat Anticipator Current 0.2 A, AC Cad Cell Resistance with Flame R < 1500 OHMS Features & Benefits Interrupted Duty Ignition Recycle on Flame Failure Serviceman Reset Protection ( Latch-up after three consecutive lockouts) Diagnostic LED's Valve Delay on/motor Delay OFF (Pre/post purge - Contact Carlin for Available Timings) 15 Second Trial for Ignition (TFI) Other Timings Available 1.3 Second Flame Failure response time (FFRT) Alarm Contacts Thermostat/aquastat Compatible SMC (Safety Monitoring Circuit) Technology Replaces Weil Mclain 643-900-317, 643900317, Carlin 6020002S, 6020002-S, 60200-02S-010010, 60200, 60200-02
Carlin 6020002S 15 Pre/15 TFI/15 Post. Interrupted Duty Oil Burner Primary Control With Alarm Contacts Power Input (Red/White Wire) 120 vac, 60 Hz, 9 VA
Limit Circuit Input (Black Wire) 120 vac, 60 Hz Motor Load 10 FLA, 60 LRA Ignitor Load 120 vac, 60 Hz, 500 VA Valve Load 120 vac, 60 Hz, 0.3 Amps Alarm Contacts 24 V, AC/DC, 2 Amps Operating Temperature Limits + 32°F to + 140°F Storage Temperature Limits -40°F to +185°F Thermostat Anticipator Current 0.2 A, AC Cad Cell Resistance with Flame R < 1500 OHMS Features & Benefits Interrupted Duty Ignition Recycle on Flame Failure Serviceman Reset Protection ( Latch-up after three consecutive lockouts) Diagnostic LED's Valve Delay on/motor Delay OFF (Pre/post purge - Contact Carlin for Available Timings) 15 Second Trial for Ignition (TFI) Other Timings Available 1.3 Second Flame Failure response time (FFRT) Alarm Contacts Thermostat/aquastat Compatible SMC (Safety Monitoring Circuit) Technology Replaces Weil Mclain 643-900-317, 643900317, Carlin 6020002S, 6020002-S, 60200-02S-010010, 60200, 60200-02
