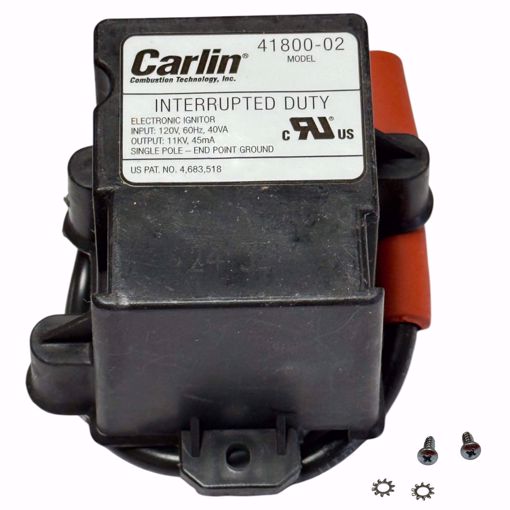

120V IGNITOR-SINGLE-POLE SECONDARY (GAS)

Carlin 4180002S 120V Ignitor Single-Pole Secondary For EZ-Gas Burners Specifications: - Power input: 120 VAC, 60 HZ, 40VA - Ignitor output: 9 KV, 45 mA RMS 14” High Voltage Wire Rated 150° C, 15 KVDC; bottom exit - Secondary grounding: Single-pole endpoint grounding - Operating temperature limits: +32° F to +140° F - Storage temperature limits: +32° F to +140° F - UL Recognized US & Canada Features - 9,000-volt output for smooth gas ignition - Solid state technology yields high performance, long life and durability - Interrupted-duty rated - Low current draw saves electricity - Epoxy sealant provides water resistance and heat dissipation - Consistent voltage output across a wide range of input voltages - Model 42800 models can be mounted on- standard 4x4 j-box - Model 42800 model primary power wires can be routed through bottom or side of housing Exactly The Same As Carllin 41800-02S, 41800-02, 4180002, Hydrotherm 16-00351-001, Hydrotherm 26-3207
