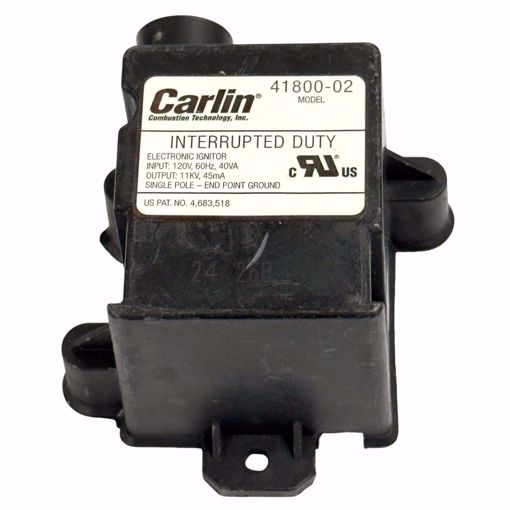

4180002FS CARLIN IGN SNGL 120V UL RAJAH SERV

Manufacturer: Carlin

4180002FS CARLIN IGN SNGL 120V UL RAJAH SERV - Input 120VAC, 60Hz, 40VA - Output 11Kv, 45 mA - Secondary Grounding Single pole endpoint grounding - Operating Temp limits 0 to 140 F - Spark Connection 1/4" male Rajah connection - Interrupted ignition duty cycle 20%, 60 seconds on (Max.) - Spark gap 1/8" - Firing Rate 23 KHz - Energy discharge 1.6 milijoule per spark - Discharge time 43 µSeconds Features - 9,000-volt output - Solid state technology yields high performance, long life and durability - Interrupted-duty rated - Low current draw saves electricity - Epoxy sealant provides water resistance and heat dissipation - Consistent voltage output across a wide range of input voltages

SKU: CARLIN:4180002FS

Product Availability: Out of stock

$150.28

This product must be purchased in increments of 1

Qty:

i h

4180002FS CARLIN IGN SNGL 120V UL RAJAH SERV

- Input 120VAC, 60Hz, 40VA
- Output 11Kv, 45 mA
- Secondary Grounding Single pole endpoint grounding
- Operating Temp limits 0 to 140 F
- Spark Connection 1/4" male Rajah connection
- Interrupted ignition duty cycle 20%, 60 seconds on (Max.)
- Spark gap 1/8"
- Firing Rate 23 KHz
- Energy discharge 1.6 milijoule per spark
- Discharge time 43 µSeconds

Features
- 9,000-volt output
- Solid state technology yields high performance, long life and durability
- Interrupted-duty rated
- Low current draw saves electricity
- Epoxy sealant provides water resistance and heat dissipation
- Consistent voltage output across a wide range of input voltages

Products specifications

Manufacturer	Carlin
