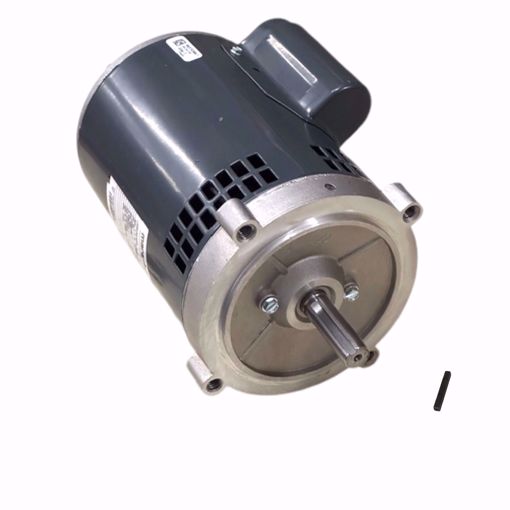

⚡ Carlin 27730S Capacitor Start Motor – 3/4 HP, 115/208-230V, 1 Phase, 3450 RPM
The Carlin 27730S Capacitor Start Motor is designed for reliable operation in residential and light commercial heating systems. Built for use with 801CRD Burner Rotation systems, this motor is thermally protected, CSA approved, and engineered for long-lasting performance.
✅ Key Features
-
✅ Capacitor Start Motor: Smooth, reliable startup and operation
-
✅ Power Rating: 3/4 HP
-
✅ Voltage: 115/208-230V, 1 Phase, 60 Hz
-
✅ Rotation: Clockwise (looking from rear) for 801CRD burner applications
-
✅ Speed: 3450 RPM, FR 56C frame
-
✅ Thermally Protected: Protects motor from overheating
-
✅ CSA Approved: Ensures safety and compliance with standards
📊 Specifications Chart
| Specification | Details |
|---|
| Part Number |
27730S |
| Motor Type |
Capacitor Start |
| Horsepower |
3/4 HP |
| Voltage |
115 / 208-230V |
| Phase |
1 Phase |
| Frequency |
60 Hz |
| RPM |
3450 |
| Rotation |
Clockwise (rear view) |
| Frame |
56C |
| Protection |
Thermally Protected |
| Certification |
CSA Approved |
| Application |
801CRD Burner Rotation systems |
⚠️ Common Symptoms (When to Replace)
-
Motor fails to start or runs intermittently
-
Overheating or tripping thermal protection frequently
-
Excessive vibration or unusual noise during operation
-
Burners not achieving full rotation speed (801CRD applications)
-
Motor windings or capacitor failure
❓ Frequently Asked Questions (FAQ)
Q1: What burners is this motor compatible with?
➡️ Designed for Carlin 801CRD Burner Rotation applications.
Q2: What rotation does this motor use?
➡️ Clockwise rotation when viewed from the rear.
Q3: Is it thermally protected?
➡️ Yes, the motor is thermally protected to prevent overheating.
Q4: What frame size is this motor?
➡️ FR 56C frame.
Q5: Is this CSA approved?
➡️ Yes, this motor is CSA approved for safety and reliability.
