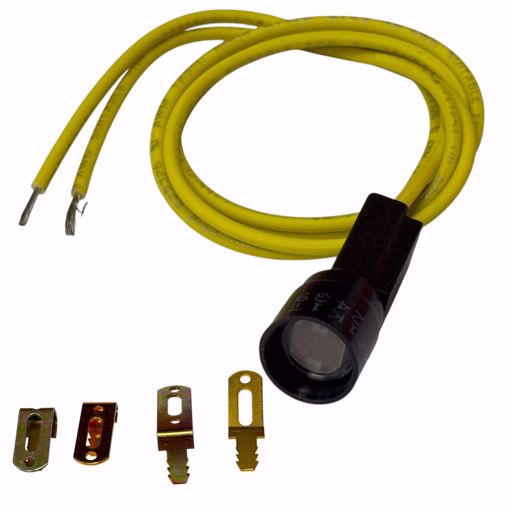

14407S0ES Carlin 22" Cad Cell Eye & Lead Assembly Service Kit
🔹 Product Overview
The Carlin 14407S0ES Cad Cell Eye & Lead Assembly Service Kit provides a reliable replacement for oil burner cad cell sensors. It is designed to ensure proper flame sensing and safe operation of your oil burner system.
🔹 Compatible Burners
| Series | Models |
|---|
| EZ Series |
EZ1, EZ2, EZ3 |
| CRD Series |
99CRD, 100CRD, 102CRD, 201CRD, 301CRD, 601CRD, 701CRD, 702CRD, 801CRD |
| FFD Series |
1050FFD |
🔹 Technical Specifications
| Specification | Details |
|---|
| Sensor Length |
22 inches |
| Type |
Cad Cell Eye & Lead Assembly |
| Application |
Oil Burners |
| Voltage Rating |
Standard for Carlin oil burners |
| Material |
Lead wire & cad cell sensor |
🔹 Shopping Tips 🛒
-
Always turn off power and fuel supply before servicing your oil burner.
-
Confirm your burner model matches the compatible list.
-
Keep a clean workspace to avoid contamination of the cad cell sensor.
-
Handle the cad cell leads carefully to prevent damage.
🔹 Common Symptoms ⚠️
-
Burner fails to start or shuts off shortly after ignition.
-
Flame sensor does not detect flame properly.
-
Oil burner runs intermittently or cycles repeatedly.
-
Error codes related to flame sensing on electronic controllers.
🔹 FAQ ❓
Q1: Can I use this kit on T-550 or T-550A burners?
A1: No, this kit is only compatible with the models listed in the compatibility chart.
Q2: How often should I replace the cad cell sensor?
A2: Typically every 3–5 years, or sooner if you notice burner performance issues.
Q3: Is it difficult to install?
A3: Moderate. Basic tools are required, and care should be taken not to damage the sensor or leads.
Q4: What should I do if my burner still fails after installing the kit?
A4: Check wiring, flame alignment, and consult your burner’s manual. If issues persist, contact a licensed technician.
