Z2075QS-K+CQB24SRL BELIMO 3/4 2W 9.8CV SWT NSR 24V MOD

Manufacturer: Belimo

Z2075QS-K+CQB24SRL BELIMO 3/4 2W 9.8CV SWT NSR 24V MOD Valve Specifications - Pattern 2 - Way - 9.8 Cv - Fluid Chilled or hot water, up to 60 % glycol - Body Pressure Rating 360 PSI - Differential Pressure 40 psi - End Fitting Sweat - Valve Size 3/4" - Body Forged Brass Actuator Specifications - 24V AC/DC - 50/60Hz - Power Consumption Running 0.3 Watts - Power Consumptions Holding 0.3 Watts - Power Consumption 1 VA - Control Type DC 2...10 V - IP40 - NEMA 2 - Torque 12 in-lb - Electrical Connection 22 GA plenum cable, 3 ft [1 m], with 1/2" NPT conduit connector - Angle of Rotation 90 Degrees - Running Time 75 seconds @ 90 degrees - Ambient Temp Range 35 to 104 F

SKU: BELIMO:Z2075QS-K+CQB24SRL

Product Availability: Out of stock

$200.72

This product must be purchased in increments of 1

Qty:

i h

Z2075QS-K+CQB24SRL BELIMO 3/4 2W 9.8CV SWT NSR 24V MOD

Valve Specifications
- Pattern 2 - Way
- 9.8 Cv
- Fluid Chilled or hot water, up to 60 % glycol
- Body Pressure Rating 360 PSI
- Differential Pressure 40 psi
- End Fitting Sweat
- Valve Size 3/4"
- Body Forged Brass

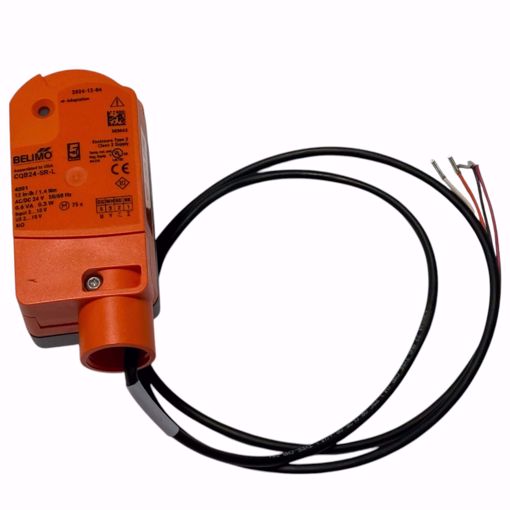

Actuator Specifications
- 24V AC/DC
- 50/60Hz
- Power Consumption Running 0.3 Watts
- Power Consumptions Holding 0.3 Watts
- Power Consumption 1 VA
- Control Type DC 2...10 V
- IP40
- NEMA 2
- Torque 12 in-lb
- Electrical Connection 22 GA plenum cable, 3 ft [1 m], with 1/2" NPT conduit connector
- Angle of Rotation 90 Degrees
- Running Time 75 seconds @ 90 degrees
- Ambient Temp Range 35 to 104 F

Products specifications

Manufacturer	Belimo
