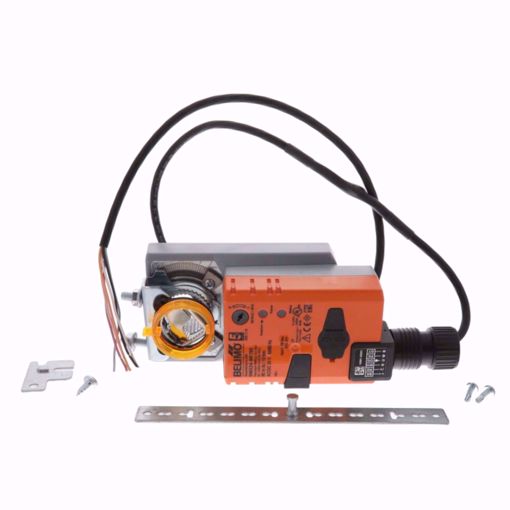

24V 90INLB 135OHM/2-10VDC NSR

Manufacturer: Belimo

- Nominal voltage AC/DC 24 V - Nominal voltage frequency 50/60 Hz - Power consumption in operation 3.5 W - Power consumption in rest position 1.3 W - Transformer sizing 6 VA (class 2 power source) - Torque motor 90 in-lb [10 Nm] - IP54 - NEMA 2 - Ambient temperature -22...122°F [-30...50°C] Electrical Connection 18 GA plenum cable with 1/2" conduit connector,degree of protection NEMA 2 / IP54, 3 ft [1 m] 10 ft[3 m] and 16ft [5 m] - Overload Protection electronic throughout 0...95° rotation

SKU: BELIMO:NMX24-MFT95

Product Availability: Out of stock

$355.56

This product must be purchased in increments of 1

Qty:

i h

- Nominal voltage AC/DC 24 V
- Nominal voltage frequency 50/60 Hz
- Power consumption in operation 3.5 W
- Power consumption in rest position 1.3 W
- Transformer sizing 6 VA (class 2 power source)
- Torque motor 90 in-lb [10 Nm]
- IP54
- NEMA 2
- Ambient temperature -22...122°F [-30...50°C]

Electrical Connection 18 GA plenum cable with 1/2" conduit connector,degree of protection NEMA 2 / IP54, 3 ft [1 m] 10 ft[3 m] and 16ft [5 m]
- Overload Protection electronic throughout 0...95° rotation

Products specifications

Manufacturer	Belimo
