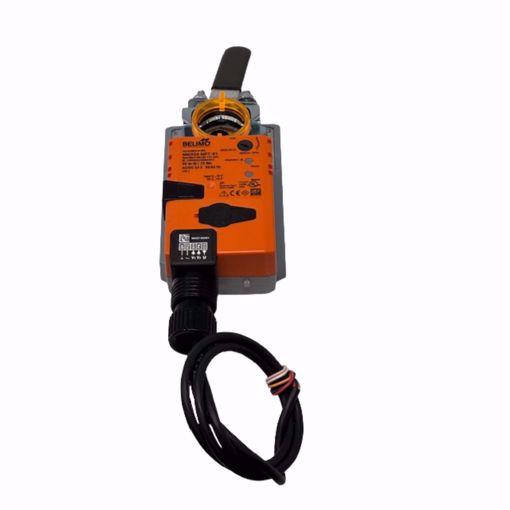

24VAC/DC NSR DAMPER ACTTUATOR

Manufacturer: Belimo

- Nominal voltage AC/DC 24 V - Nominal voltage frequency 50/60 Hz - Power consumption in operation 3.5 W - Power consumption in rest position 1.3 W - Transformer sizing 6 VA (class 2 power source) - Angle of rotation Max. 95°, adjustable with mechanical stop - Angle of rotation note adjustable with mechanical stop - Running Time (Motor) default 150 s, variable 45...170 s - Position indication Mechanically, 30...65 mm stroke - Manual override external push button - Position feedback U note Max. 0.5 mA Electrical Connection 18 GA plenum cable, 3 ft [1 m], with 1/2" conduitconnector (10 ft [3 m] and 15 ft [5 m] available) - Overload Protection electronic throughout 0...95° rotation

SKU: BELIMO:NMX24-MFT-X1

Product Availability: 1

$362.05

This product must be purchased in increments of 1

Qty:

i h

- Nominal voltage AC/DC 24 V
- Nominal voltage frequency 50/60 Hz
- Power consumption in operation 3.5 W
- Power consumption in rest position 1.3 W
- Transformer sizing 6 VA (class 2 power source)
- Angle of rotation Max. 95°, adjustable with mechanical stop
- Angle of rotation note adjustable with mechanical stop
- Running Time (Motor) default 150 s, variable 45...170 s
- Position indication Mechanically, 30...65 mm stroke
- Manual override external push button
- Position feedback U note Max. 0.5 mA

Electrical Connection 18 GA plenum cable, 3 ft [1 m], with 1/2" conduitconnector (10 ft [3 m] and 15 ft [5 m] available)
- Overload Protection electronic throughout 0...95° rotation

Products specifications

Manufacturer	Belimo
