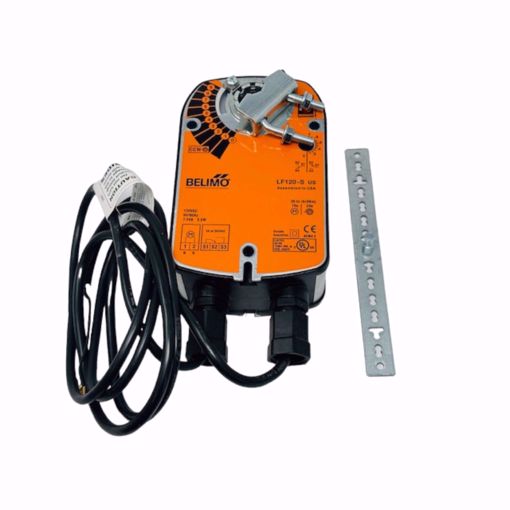

120V;35#S/R;ON/OFF;AUXSWITCH

Manufacturer: Belimo

Basic Fail-Safe actuator for controlling dampers in typical commercial HVAC applications. • Torque motor 35 in-lb [4 Nm] • Nominal voltage AC 120 V • Control On/Off • 1x SPDT Voltage AC/DC: AC 120 V Power Consumption (Running): 5.5 W Power Consumption (Holding): 3.5 W Power Consumption For Wire Sizing: 7.5 VA Auxiliary Switches: 1x SPDT Torque: 35 in-lb [4 Nm] Control Type: On/Off Direction Of Motion Motor: selectable with switch 0/1 Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting Angle of Rotation: 95 Running Time (Motor): 75 s / 90° Running Time (Fail-safe): <25 s Protection category: IP54 Degree Of Protection NEMA: NEMA 2 Enclosure Type: UL Enclosure Type 2 Ambient Temperature: -22...122°F [-30...50°C]

SKU: BELIMO:LF120-S

Product Availability: 1

$334.05

This product must be purchased in increments of 1

Qty:

i h

Basic Fail-Safe actuator for controlling dampers in typical commercial HVAC
applications.

• Torque motor 35 in-lb [4 Nm]
• Nominal voltage AC 120 V
• Control On/Off
• 1x SPDT

Voltage AC/DC: AC 120 V
Power Consumption (Running): 5.5 W
Power Consumption (Holding): 3.5 W
Power Consumption For Wire Sizing: 7.5 VA
Auxiliary Switches: 1x SPDT
Torque: 35 in-lb [4 Nm]
Control Type: On/Off
Direction Of Motion Motor: selectable with switch 0/1
Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
Angle of Rotation: 95
Running Time (Motor): 75 s / 90°
Running Time (Fail-safe): <25 s
Protection category: IP54
Degree Of Protection NEMA: NEMA 2
Enclosure Type: UL Enclosure Type 2
Ambient Temperature: -22...122°F [-30...50°C]

Products specifications

Manufacturer	Belimo
