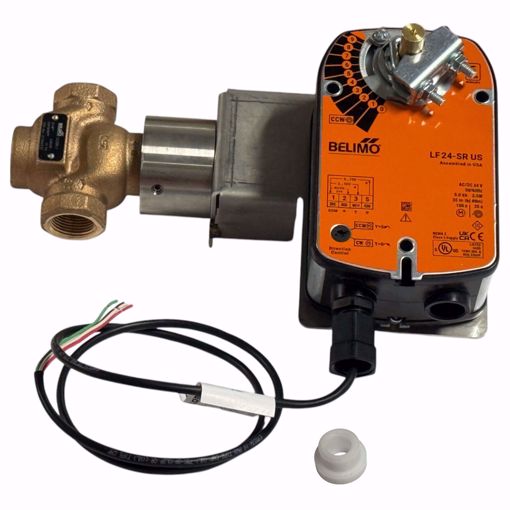

3/4 2W 5.5 CV S/R 24V PROP

Manufacturer: Belimo

G220B-J+LF24-SR BELIMO 3/4 2W 5.5 CV S/R 24V PROP Valve Specifications - ANSI Class 250 - Pattern 2 - Way - 5.5 Cv - Fluid Chilled or hot water up to 60 % glycol, steam - Body Pressure Rating ANSI Class 250, up to 400 psi below 150 F - Body Bronze - Valve Plug Brass - Spindle Seal EPDM O -Ring - Max Inlet Pressure 35 psi - Max Differential Pressure (Steam) 20 psi - Valve Size 3/4" Actuator Specifications - 24 V AC/DC - Power Consumption (Running) 2.5 Watts - Power Consumption (Holding) 1 Watts - Power Consumptions For Wire Sizing 5 VA - Protection IP54 - NEMA 2 - Torque 35in-ib - 50/60 Hz - 2 to 10 VDC Control input - Spring Return - Electrical Leads 18" GA Plenum cable 1m with 1/2" conduit connector - Transformer Sizing 5 VA - Running Time (Motor) 150 secs @ 90 Degrees

SKU: BELIMO:G220B-J+LF24-SR

Product Availability: 1

$958.23

This product must be purchased in increments of 1

Qty:

i h

G220B-J+LF24-SR BELIMO 3/4 2W 5.5 CV S/R 24V PROP

Valve Specifications
- ANSI Class 250
- Pattern 2 - Way
- 5.5 Cv
- Fluid Chilled or hot water up to 60 % glycol, steam
- Body Pressure Rating ANSI Class 250, up to 400 psi below 150 F
- Body Bronze
- Valve Plug Brass
- Spindle Seal EPDM O -Ring
- Max Inlet Pressure 35 psi
- Max Differential Pressure (Steam) 20 psi
- Valve Size 3/4"

Actuator Specifications
- 24 V AC/DC
- Power Consumption (Running) 2.5 Watts
- Power Consumption (Holding) 1 Watts
- Power Consumptions For Wire Sizing 5 VA
- Protection IP54
- NEMA 2
- Torque 35in-ib
- 50/60 Hz
- 2 to 10 VDC Control input
- Spring Return
- Electrical Leads 18" GA Plenum cable 1m with 1/2" conduit connector
- Transformer Sizing 5 VA
- Running Time (Motor) 150 secs @ 90 Degrees

Products specifications

Manufacturer	Belimo
