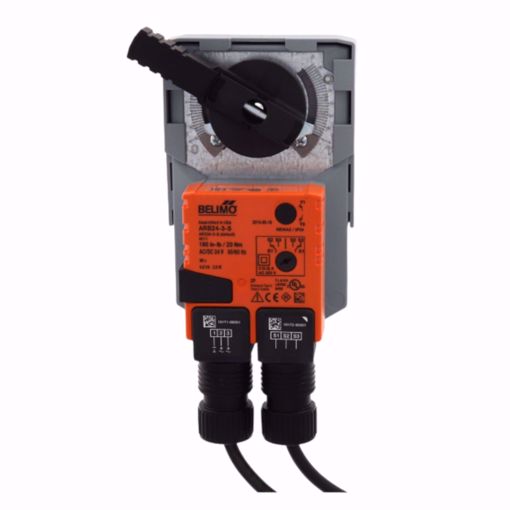

24V NSR 180INLB ON/OFF/FLT

Manufacturer: Belimo

ARB24-3-S 24V NSR 180INLB ON/OFF/FLT Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, 1x SPDT Voltage AC/DC: AC/DC 24 V Nominal voltage frequency: 50/60 Hz Nominal voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V Power Consumption (Running): 2.5 W Power Consumption (Holding): 0.5 W Power Consumption For Wire Sizing : 5.5 VA Auxiliary Switches: 1x SPDT Control Type: Floating/3-point Direction Of Motion Motor: selectable with switch 0/1 Manual Override: External push button Angle of Rotation: 90 Running Time (Motor): 90 s / 90° Protection category: IP54 Degree Of Protection NEMA: NEMA 2 Enclosure Type: UL Enclosure Type

SKU: BELIMO:ARB24-3-S

Product Availability: Out of stock

$385.29

This product must be purchased in increments of 1

Qty:

i h

ARB24-3-S 24V NSR 180INLB ON/OFF/FLT
Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, 1x SPDT
Voltage AC/DC: AC/DC 24 V
Nominal voltage frequency: 50/60 Hz
Nominal voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V
Power Consumption (Running): 2.5 W
Power Consumption (Holding): 0.5 W
Power Consumption For Wire Sizing : 5.5 VA
Auxiliary Switches: 1x SPDT
Control Type: Floating/3-point
Direction Of Motion Motor: selectable with switch 0/1
Manual Override: External push button
Angle of Rotation: 90
Running Time (Motor): 90 s / 90°
Protection category: IP54
Degree Of Protection NEMA: NEMA 2
Enclosure Type: UL Enclosure Type

Products specifications

Manufacturer	Belimo
