- Nominal voltage AC/DC 24 V
- Nominal voltage frequency 50/60 Hz
- Nominal voltage range AC 19.2...28.8 V / DC 21.6...28.8 V
- Power consumption in operation 7.5 W
- Power consumption in rest position 3 W
- Transformer sizing 10 VA
- Torque motor 180 in-lb [20 Nm]
- Manual override 5 mm hex crank (3/16" Allen), supplied
- Angle of rotation 95 Degrees
- Running Time (Motor) 150 s / 90° Degrees
Electrical Connection 18 GA appliance or plenum cables, 1 m, 3 m or
5 m, with or without 1/2" conduit connector

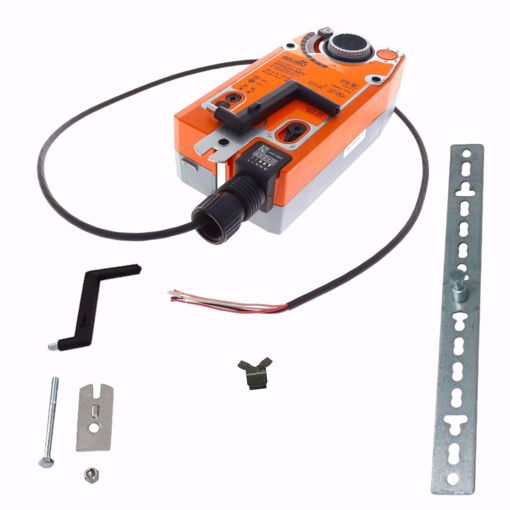

The AF..24-MFT actuator provides 95° of rotation and is provided with a graduated position
indicator showing 0° to 95°. The actuator will synchronize the 0° mechanical stop or the physicaldamper or valve mechanical stop and use this point for its zero position during normal control operations.
A unique manual override allows the setting of any actuator position within its 95° of rotation with no power applied. This mechanism can be released physically by the use of a
crank supplied with the actuator. When power is applied the manual override is released and
the actuator drives toward the fail-safe position.
The actuator uses a brushless DC motor which is controlled by an Application Specific Integrated Circuit (ASIC) and a microprocessor. The microprocessor provides the intelligence to the ASIC to provide a constant rotation rate and to know the actuators' exact position. The ASIC monitors and controls the brushless DC motor's rotation and provides a Digital Rotation Sensing (DRS) function to prevent damage to the actuator in a stall condition. The position feedback signal is generated without the need for mechanical feedback potentiometers using DRS.
The actuator may be stalled anywhere in its normal rotation without the need of mechanical end switches. The AF..24-MFT is mounted directly to control shafts up to 1.05" diameter by means of its universal clamp and anti-rotation bracket. A crank arm and several mounting brackets are available for damper applications where the actuator cannot be direct coupled to the damper shaft. The spring return system provides minimum specified torque to the application during a power interruption. The AF..24- MFT actuator is shipped at 5° (5° from full fail-safe) to provide automatic compression against damper gaskets for tight shut-off.
