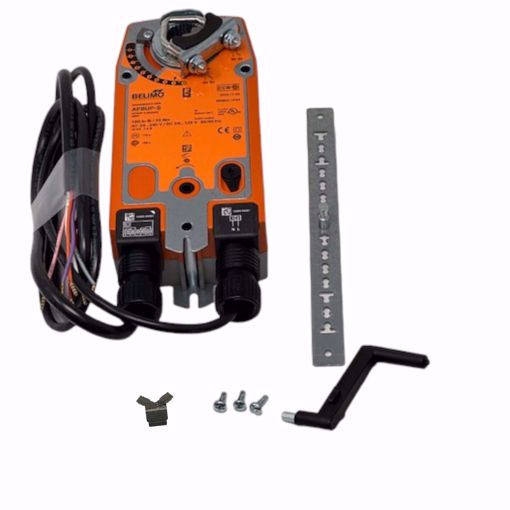

24V-240V DAMPER ACT W/ AUX

- Voltage AC/DC: AC 24...240 V / DC 24...125 V - Power Consumption (Running): 7 W - Power Consumption (Holding) : 3.5 W - Power Consumption For Wire Sizing: 18 VA - Auxiliary Switches: 2x SPDT - Torque: 180 in-lb [20 Nm] - Control Type: On/Off - Direction Of Motion Motor: selectable by ccw/cw mounting - Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting - Manual Override: 5 mm hex crank (3/16" Allen), supplied - Angle of Rotation: 95 - Running Time (Motor): 75 s / 90° - Running Time (Fail-safe): <20 s - Protection category: IP54 - Degree Of Protection NEMA: NEMA 2 - Enclosure Type: UL Enclosure Type 2 - Ambient Temperature: -22...122°F [-30...50°C] For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact, or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05& deg, in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft The AFB and AFX series actuators provide true spring return operation for reliable failsafe application and positive close off on air tight dampers. The spring return system provides constant torque to the damper with, and without, power applied to the actuator. The AFB and AFX series provides 95° of rotation and is provided with a graduated position indicator showing 0° to 95°. The actuator may be stalled anywhere in its normal rotation without the need of mechanical end switches. The AFBUP-S and AFXUP-S versions are provided with two built-in auxiliary switches. These SPDT switches provide safety interfacing or signaling, for example, for fan startup. The switching function at the fail-safe position is fixed at +10°, the other switch function is adjustable between +10° to +90°. The AFBUP, AFBUP-S, AFXUP and AFXUP-S actuator is shipped at +5° (5° from full fail-safe) to provide automatic compression against damper gaskets for tight shut-off.
