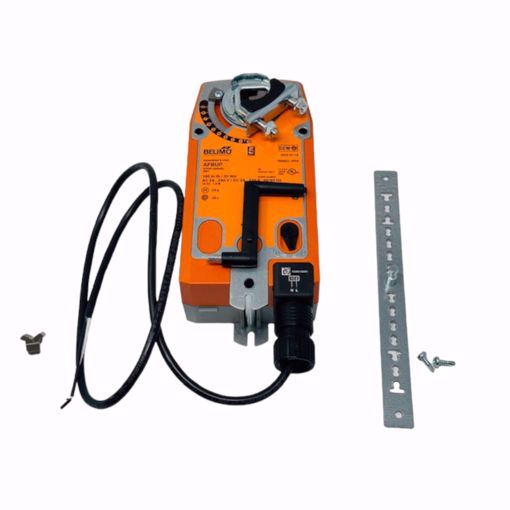

Basic Fail-Safe actuator for controlling dampers in typical commercial HVAC
applications
• Torque motor 180 in-lb [20 Nm]
• Nominal voltage AC 24...240 V /
DC 24...125 V
• Control On/Off
Voltage AC/DC: AC 24...240 V / DC 24...125 V
Power Consumption (Running): 7 W
Power Consumption (Holding): 3.5 W
Power Consumption For Wire Sizing: 18 VA
Torque: 180 in-lb [20 Nm]
Control Type: On/Off
Direction Of Motion Motor: selectable by ccw/cw mounting
Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
Manual Override: 5 mm hex crank (3/16" Allen), supplied
Angle of Rotation: 95
Running Time (Motor): 75 s / 90°
Running Time (Fail-safe): <20 s
Protection category: IP54
Degree Of Protection NEMA: NEMA 2
Enclosure Type: UL Enclosure Type 2
Ambient Temperature: -22...122°F [-30...50°C]
