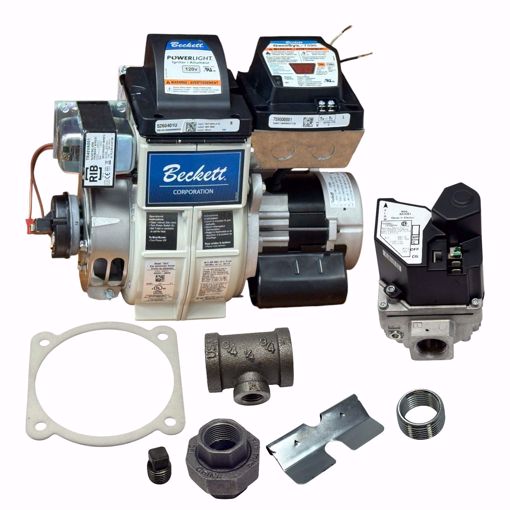

CG4001 BECKETT NATURAL GAS CONVERSION BURNER W/ GENISYS 7590 3/4 INCH
Specifications
- Capacity 80,000 - 250,000 btu/hr input
- Fuels Natural gas or LP gas
- 120V/60Hz, 3 Amps running, 12 Amps LR
Dimensions (standard)
• Height: 14.4” , 10.3” (Chassis only)
• Width: 13.1”
• Depth: 15.8” (with Air Tube)
Advanced Components
• New GeniSys Gas Burner Control
• 24volt standard Gas Valve
• New Beckett Gas Igniter
• PSC Motor
• Removable Gun Assembly
CG4001 Important Components
Burner Control
Beckett Part Number 7590D0001U
- 120 V, 50/60 Hz (igniter, motor)
- 24 V (18-30 VAC) 50/60 Hz (gas valve and air proving switch)
- Current Draw (run): 0.2 amps (control only)
- Main Valve Rating: 2.0 amps
- Motor Relay Rating: 7.4 amps (120 V)
- Igniter Relay Rating: 1.0 amp (120 V)
- 3 LEDs provide basic diagnostic information
- Single or multiple trials for ignition before lockout
- Designed for easy mounting on a 4 x 4 junction
- Selectable ignition timing 4-15 seconds
- Selectable pre-purge timing 1-240 seconds
- Timings: Ignition Timing: 4-15 seconds
- Pre-purge Timing: 1-240 seconds
- Inter-purge Timing: 90-300 seconds
- Flame Failure Response Time: 0.8 seconds (maximum)
- Thermostat Voltage: 24 Vac (if used)
- Equipped with Genisys
The Beckett GeniSys Gas Power Burner Control is a 24 Vac primary safety control designed for use on gas power burners in residential and light commercial gas heating applications. Applications may include boilers, furnaces, water heaters, space heating and commercial cooking equipment. The GeniSy Gas Power Burner Control provides supervision of a 120 volt burner motor and a separate 120 Vac igniter as well as a 24 Vac gas valve.
The 7590C and D models provide connections for a combustion air proving switch and monitor the switch position to check for sticking or welded switch contacts.
Becket Igniter Part Number 5260401U
- Input 120V, 60Hz, 0.2 Amps
- Output 6KV
- Output 25mA
- Higher output voltage for reliable ignition.
- Approximately 75% lower input amps.
PSC Beckett Burner Motor Part Number 21805U
- 115V
- 60Hz
- 1/7HP
- 1.6 Amps
- 1 Phase
- 3450 RPM
- Max Ambient 150 F
- ROT CCW Shaft End
Transformer Functional Devices Part Number TR40VA001
- 120V/24V
- Mounting Hub/Foot
- 50/60Hz
- Temp Range -30 F to 140F
Gas Valve Beckett Part Number 22470U
- 24V
- 50/60Hz
- .410 Amps
- Max Pressure 1/2" PSI
- REG 3.5 WC
- White Rodgers: 36H22-416
- Ambient Temp Range -40 to 175F
- Natural Gas
Air Proving Switch and Cover Assy Beckett Part Number 52264U
- 0.65" WC
- Cleaveland Controls ES2228-0785
Also Includes
- Beckett 52279-001 parts bag which includes baffle, tee, and union
- BECKETT:3380 Gasket Housing Square
- BECKETT:5880 Low Fire Rate Baffle
Additional Features
Our CG4 series chassis coupled with a welded insertion make a perfect match to your appliance. Performance-enhancing combustion technology utilizing proven fixed-head burner design.
- 24 volt gas valve, 3.5″ W.C. manifold
- New Beckett GeniSys™ 7590 advanced gas burner control with flame rod and air proving
- New Beckett gas igniter
- Proven Beckett fixed head combustion
- Easy access to orifice for rate change and propane conversion
- Air guide provides high static pressure for smooth starts and minimal pulsation
- Removable gas gun assembly for ease of servicing
The Beckett CG4 gas burner’s design uses technically advanced components, such as Beckett’s GeniSys burner control and Powerlight igniter to meet increased demand for improved performance in high efficiency appliances and modern well insulated homes. The CG4 is also a certified conversion burner that can be used for replacing an existing oil burner when installations are converted to gas.
**DOES NOT INCLUDE BLAST TUBE AND ASSEMBLY, BLAST TUBE MUST BE CHOSEN FROM SPECIFICATION GUIDE BASED ON APPLIANCE**
**THIS PRODUCT SHOULD ONLY BE INSTALLED BY A CERTIFIED TECHNICIAN AND MUST BE ADJUSTED WITH A CALIBRATED COMBUSTION ANALYZER**
