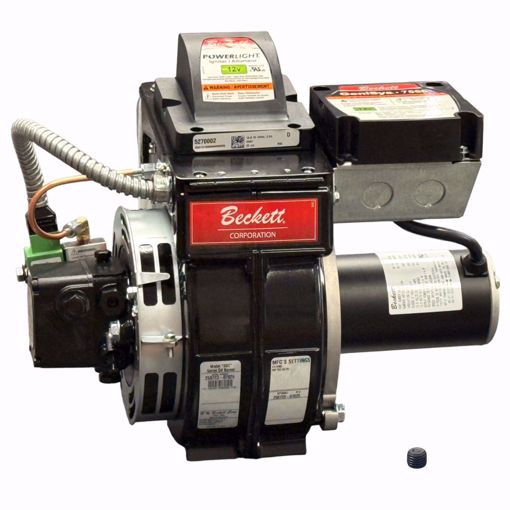

BPW601 BECKETT BURNER CHASSIS LESS BLAST TUBE AND ASSEMBLY, COMES WITH A2YA-7916 OIL PUMP AND 7556P-1530 CONTROL
Specifications
- Model SDC
- 1.75 to 5.50 GPH @ 12 VDC @ 60 HZ @ 18.8 Amps
- Capacity 245,000 - 770,000 Btu/h
- Ambient Operating Temp 32 to 115 F
Fuels
- U.S. – No. 1 or No. 2 diesel fuel or kerosene.
- No. 1 or No. 2 heating oil (ASTM D396) only.
Dimensions
- Height (maximum): 12-1/2 inches
- Width (maximum): 147/8 inches
- Depth (chassis only): 8 9/16 inches
Burner Ignitor Becket Part Number 5270002U
- Input Voltage: 10.8 – 16 Vdc
- Output Voltage: 20kV peak
- Output Current: 25 mA RMS
- Input Current: 2.5 A Maximum
- Ambient Operating Temperature: -40°F (-40°C) to 150°F (66°C)
- Storage Temperature: -40°F (-40°C) to 150°F (66°C)
- Moisture: 5 to 95% Relative Humidity
Features
- 20kV peak rating guarantees quick and efficient ignition
- External heat sink eliminated for improved performance and reduced frequency of replacement due to overheating and arcing
- Lightweight, single piece design is compatible with Beckett and other burners to reduce required inventory
- Weighs less than 1 lbs versus an 8 lbs iron core transformer, making shipping and installation easier
- Fully potted with improved epoxy to withstand thermal shock and protect electronic components, waterproof
- Simplified wiring requirements and fewer wires for ease of installation
- A vacuum encapsulation process, using epoxy, provides resistance to moisture, excellent heat dissipation and electrical insulation
- Case material is high-temperature thermoplastic that provides high impact strength, scratch resistance, impenetrable to oil and most chemicals
- Adapts to multiple baseplates – making it the most versatile unit
on the market
- Epoxy potting will not shrink or crack like tar-filled transformers
Burner Control Beckett Part Number 7556P1530U
Inputs
Voltage: 12 Vdc nominal (11 to 16 Vdc)
Current: 160 mA plus burner motor, igniter, and valve loads
Outputs
Motor: 12 Vdc, 20 full load amps (FLA), 100 locked rotor amps (LRA)
Igniter: 12 Vdc, 5 A
Solenoid Valve: 12 Vdc, 2 A
Lockout Alarm: 12 Vdc, 2 A
Environmental Ratings
Storage & Operating Ambient Temperature: -40°F to +160°F (-40°C to +71°C)
Moisture: 5 to 95% RH, condensing
Features & Benefits
- Programmable valve-on delay and motor-off delay provides chamber cooling after call for heat
- Valve-on delay / motor-off delay — field-programmable with Beckett GeniSys Contractor Tool
- Epoxy potted for moisture resistance
- Welded relay protection with redundant motor relays
- High ambient temperature rating
- Alarm output enables visual or audio indication of flame failure and lock out condition
- Interrupted ignition
- Relight function
- Fused protection
- 15 second lockout time
- Communication port
Beckett Burner Motor Part Number 22244 PMDC Motor
- Burner: SDC Oil Burner – 1.75 to 5.50 GPH | DC Power
- 1/4 H.P.
- 13.5 Vdc @ 18 Amps (Max.)
- 3400 RPM
- Nema ‘N’ Flange
- Max Ambient Temp 104 F (40 C)
For the Beckett ADC Oil Burner (0.75 to 2.50 GPH | DC Power) and SDC Oil Burner (1.75 to 5.50 GPH | DC Power) lines, the PMDC motor has been designed for indoor and outdoor environments for light commercial and specialty applications. In both 12VDC and 24VDC options, the motor provides combustion air and pressurized oil to the burner by driving one of Beckett’s Blower Wheels and Beckett’s Clean-cut Oil Pump.
Fuel Pump Beckett Part number PF226N2U Suntec A2YA-7916B
- Single Stage
- 7 GPH @ 100 to 150 psi @ 3450 RPM
- 3 GPH @ 150 to 200 psi @ 3450 RPM
- Suitable for Kerosene, No. 1 or No. 2 Fuel Oil
- Rotation Right-Handed
- Max Pressure 200 psi
Also Includes
- Beckett: 2383U Blower Wheel 6-1/4"
- Beckett: 2154101U Coupling
- Beckett: 5348B Beckett Burner Housing Black
- Beckett: 5151503 Air band - 10 Slot
- Beckett: 3215U Air Shutter 10 Slot
- Beckett: 5394 8" Copper Tubing
- Beckett: 2256 Brass Elbow
- Beckett: 21807 Valve Cordset
- Beckett: 3666 Spline Nut For Nozzle Line Assembly
- Beckett: 5780 Electrode Kit
- Beckett 5770 4x4 Wiring Box
Features & Benefits
- Available in either 12 Vdc or 24 Vdc configurations.
- Beckett GeniSys Control uses a suitable cad cell flame sensor to control the motor, igniter, and solenoid valve.
- Interrupted duty ignition extends battery life by only drawing full load current during the ignition period. Intermittent duty ignition is also available.
- Available with a pump-mounted solenoid blocking valve for smoother light-offs and cleaner shutdown.
The Beckett SDC oil burner is designed for applications where an AC power source is not an option. Beckett GeniSys® Control uses a suitable cad cell flame sensor to control the motor, igniter, and solenoid valve. Interrupted duty ignition extends battery life by only drawing full load current during the ignition period. Intermittent duty ignition is also available. Available with a pump-mounted solenoid blocking valve for smoother light-offs and cleaner shutdown.
SDC 12vdc burner chassis - **this is chassis only, less blast tube & assembly and flange**
