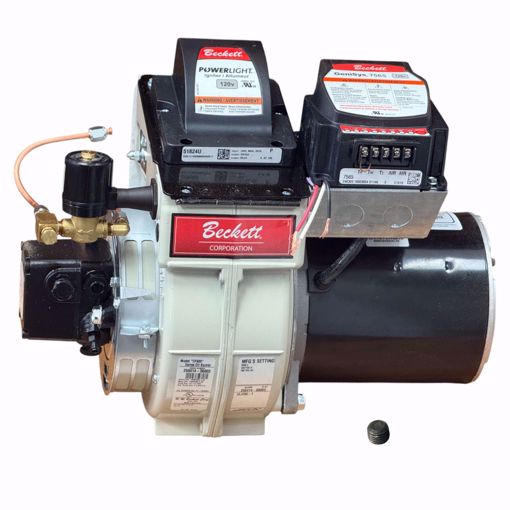

BCF403 BECKETT CF-800 OIL BURNER CHASIS W/ ON/OFF B PUMP
Model CF800
Specifications
- Firing Range 3.00 to 8.0 GPH
- Control Circ 120V/60Hz @ 4.5 Amps
- Motor Circ 120V/60Hz@ 4.8 Amps
- Oil Nozzle 45-70* Solid
Fuels
- U.S. # 1 or # 2 Fuel Oil Only (ASTM D396)
- Canada #1 Stove Oil or #2 Furnace Oil Only
Igniter Beckett Part Number 51824U
- Input 120V, 60 Hz @ 35 VA
- Output 20kvpk
- Output 35Ma
- Ambient Temp -40 to 150F
- A vacuum encapsulation process, using a synthetic resin, provides resistance to moisture, excellent heat dissipation and electrical insulation
- Case material is a high-temperature thermoplastic that provides high impact strength, scratch resistance, impenetrable to oil, and most chemicals
- Epoxy potting will not shrink or crack like tar-filled transformers
Beckett’s PowerLight 120 VAC fuel oil igniters offer improved performance and longer life. This igniter is easy to install and is designed as a universal replacement for Beckett and other manufacturer’s igniters.
Primary Control Becket Part Number 7505C1515U
Inputs
- Voltage: 120 Vac nominal (102 to 132 Vac
- Current: 100 mA nominal (150 mA max at 132 Vac)
- 60Hz
Outputs
- Motor: 120 Vac, 10 full load amps (FLA), 60 locked rotor amps (LRA)
- Igniter: 120 Vac, 3 A @ 0.7 PF min
- Solenoid Valve: 120 Vac, 1 A @ 0.7 PF min
- Lockout Time 15 Sec
- Valve-on Delay Time 15 Sec
- Motor-off Delay Time 15 Sec
- Storage & Ambient -40°F to +150°F
- Water Resistant
- Thermostat and boiler control compatible
- Customizable pre-time and post-time
- Three status lights for system monitoring and diagnostics
The Beckett GeniSys 7505 Oil Burner Control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications. The GeniSys 7505 is used with the GeniSys CAD Cell Flame Detector Kit 7006U to control the oil burner’s motor, igniter, and optional solenoid valve. It has front-mounted, 24 VAC thermostat terminals compatible with both mechanical and many power stealing thermostats. The control operates the burner with interrupted ignition with a 15 second lockout time
Motor Beckett Part Number 21341U
- 1/3 HP
- 3450 RPM
- 115V
- 60Hz
- 1 Phase
- Thermally Protected Reset Press Red Button
Fuel Oil Pump Beckett PF224N2U (Suntec Part Number B2TA-8248B)
- 8 GPH@100-150 psi, 3450 rpm (#2 fuel oil and lighter fuel)
- 3 GPH@100-150 psi, 2850 rpm (#2 fuel oil and lighter fuel)
- 3450 RPM
- 2 Stage Oil Pump
- Shaft 5/16"
- Oil Temp Range 50 to 115 F
- Inlet and return 1/4 NPTF
- Nozzle outlet 1/8 NPTF
Oil Valve Kit Beckett Part Number 21789U
- 120V
- 60Hz
Some Beckett Part Numbers on Unit
- 51373 Burner Housing
- 3819 Air Band
- 51286U Nozzle Line Escutcheon Plate
- 21339U Blower Wheel Size 6-5/16 X 2-3/8"
- 2433 Burner Coupling
- 178U Air Guide
- 5394 Connector Tube Assembly
- 5770 Electrical Box
- 7006U Cad Cell Eye
- 51345 Electrode Kit
- 51311 Universal Pressure Flange Kit
- 3666 Splined Nut
Features
- On/Off standard operation
- UL/cUL standard
- CSD-1 option available
- Cast aluminum housing for robust construction and quiet operation
- Direct spark ignition
- 1/2 HP Motor 120 V standard
- Remote mounted control panels available
The Beckett CF800 oil burner’s design and technically advanced components meet increasing demand for improved performance in high-efficiency appliances in light commercial/industrial applications. Our CF800 utilizes a proven combustion technology and our chassis coupled with a welded insertion make a perfect match to your appliance.
Certified for biodiesel blends up to 20% (D396 for B6-B20) to give consumers reliable performance while reducing the carbon footprint of their heating system.
**NOTE*** This is For The Chasis Only. This Does NOT Include A Blast Tube And Assembly Kit, A Flange And Gasket Kit Or A Nozzle. They Are All Sold Separate And Need To Be Sized Based On The Appliance
