REPLACED BY BR200

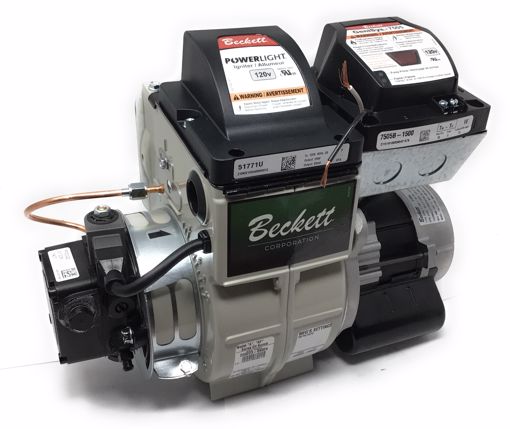

Beckett B3001 AF Oil Burner Chassis Only Does Not Include Blast Tube or Flange Motor: 3450 rpm, NEMA M-flange, manual reset overload protection Power Supply: 120 V./60Hz./1 phase Ignition: 10,000 V./23 ma. secondary, continuous duty shielded transformer Operation Load: 5.8 amps (maximum) Nozzle Line Electrode Assembly - Self-centering, delivers oil to the nozzle, high voltage electricity to the electrodes; static plate controls and evens out air flow to the head for smooth, efficient combustion. Flame Retention Head - One-piece flame retention burner head. Highly stable and intense combustion increases efficiency by as much as 35 percent. Drive Motor - Continuous duty, split phase motor, built for daily hard use and years of trouble-free operation. Overload protection included. Ignition Transformer - 10,000 V./23ma. secondary positively and smoothly ignites fuel. Electrically balanced and shielded. No TV interference. Designed for heavy duty continuous operation. Connector Tube Fitting - Special Beckett, high quality flare fitting. Burner Housing - Sturdy die cast, precisely machined aluminum housing aligns pump and motor for smoothest operation and longest coupling life.
