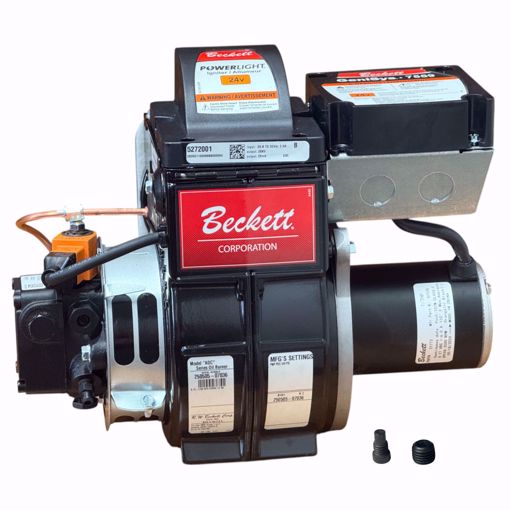

BECKETT ADC 24VDC OIL BURNER CHASSIS

Model ADC 24VDC Oil Burner Chassis

Burner Voltage (nominal): 27 Vdc Voltage Range: 21.6V - 28V

Operating Load w/ igniter on: 9 Amps w/ igniter off: 6 - 8 Amps

Motor Voltage (nominal): 27Vdc Voltage Range: 21.6V - 30V

Full Load Amps: 6.1 Amps

Starting Amps: 50 Amps

1/7 HP, 3500 RPM, NEMA “M” Flange

Igniter Voltage (nominal): 24Vdc Voltage range: 21.6V - 32V

Current: 1.2 Amps Ign.

Secondary: 19kVpk 35mA

Interrupted OR intermittent duty Valve Coil Voltage: 24 Vdc Current: < 0.5A
