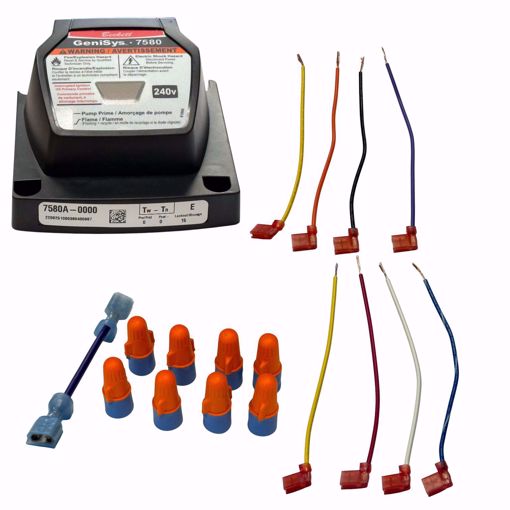

BECKETT 7580A0000U 240 VOLT PRIMARY CONTROL

Electrical Ratings Inputs - Voltage: 208-240 VAC - Current: 100 mA plus burner motor, igniter, and valve loads Outputs - Motor: 208/240 Vac, 5 full load amps (FLA*), 30 locked rotor amps (LRA) - Note: Reduce motor FLA rating by igniter current - Igniter: 208/240 Vac, 3 A @ 0.7 PF min - Solenoid Valve: 208/240 Vac, 1 A @ 0.7 PF min Application Ratings - Oil Burner Input: less than 20gph Environmental Ratings - Storage & Operating Ambient Temperature: -40°F to +150°F (-40°C to +65°C) - Moisture: 5 to 95% Features & Benefits - Epoxy potted for moisture resistance - Compatible with most operating controls - Customizable pre-time and post-time - Three status lights for system monitoring and diagnostics - Welded relay protection with redundant motor relays - Limited reset and limited recycle - Sleek, modern design - Technician pump prime mode - 18 month warranty - Communication ports for the GeniSys Contractor Tool The Beckett GeniSys 7580 Oil Burner Control is a 240 VAC primary safety control for Commercial / Industrial pressure washer and other industrial applications. The GeniSys 7580 is used with the GeniSys® CAD Cell Flame Detector Kit 7006U to control the oil burner’s motor, igniter, and optional solenoid valve. The control operates the burner with interrupted ignition with a 15 second lockout time. With the GeniSys Contractor Tool 52082, the control can be programmed with pre-purge and post-purge timings. For diagnostics, the GeniSys 7580 stores the last 15 cycles.
