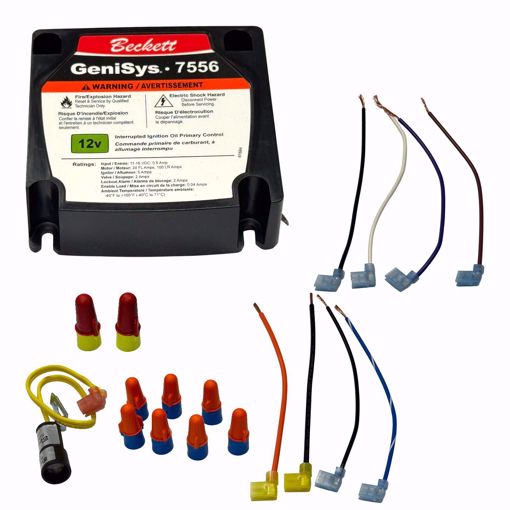

BECKETT 7556P152MU GENESIS PRIMARY CONTROL 12 VOLT DC

Manufacturer: Beckett

Beckett 7556P152MU Genesis Primary Control 12 Volt DC Electrical Ratings Inputs - Voltage: 12 Vdc nominal (11 to 16 Vdc) - Current: 160 mA plus burner motor, igniter, and valve loads Outputs - Motor: 12 Vdc, 20 full load amps (FLA), 100 locked rotor amps (LRA) - Igniter: 12 Vdc, 5 A - Solenoid Valve: 12 Vdc, 2 A - Lockout Alarm: 12 Vdc, 2 A Environmental Ratings - Storage & Operating Ambient Temperature: -40°F to +160°F (-40°C to +71°C) - Moisture: 5 to 95% RH, condensing Replaces Beckett 7434, 7556P152M, 7556P-152M, 7556P-152, 7556P152 Motor-Off Delay Time 2 Mins Features & Benefits - Programmable valve-on delay and motor-off delay provides chamber cooling after call for heat - Valve-on delay / motor-off delay — field-programmable with Beckett GeniSys® Contractor Tool - Epoxy potted for moisture resistance - Welded relay protection with redundant motor relays - High ambient temperature rating - Alarm output enables visual or audio indication of flame failure and lock out condition - Interrupted ignition - Relight function - Fused protection - 15 second lockout time - Communication port

SKU: BECKETT:7556P152MU

Product Availability: 4

$206.18

This product must be purchased in increments of 1

Qty:

i h

Beckett 7556P152MU Genesis Primary Control 12 Volt DC

Electrical Ratings
Inputs
- Voltage: 12 Vdc nominal (11 to 16 Vdc)
- Current: 160 mA plus burner motor, igniter, and valve loads

Outputs
- Motor: 12 Vdc, 20 full load amps (FLA), 100 locked rotor amps (LRA)
- Igniter: 12 Vdc, 5 A
- Solenoid Valve: 12 Vdc, 2 A
- Lockout Alarm: 12 Vdc, 2 A

Environmental Ratings
- Storage & Operating Ambient Temperature: -40°F to +160°F (-40°C to +71°C)
- Moisture: 5 to 95% RH, condensing

Replaces Beckett 7434, 7556P152M, 7556P-152M, 7556P-152, 7556P152

Motor-Off Delay Time 2 Mins

Features & Benefits
- Programmable valve-on delay and motor-off delay provides chamber cooling after call for heat
- Valve-on delay / motor-off delay — field-programmable with Beckett GeniSys® Contractor Tool
- Epoxy potted for moisture resistance
- Welded relay protection with redundant motor relays
- High ambient temperature rating
- Alarm output enables visual or audio indication of flame failure and lock out condition
- Interrupted ignition
- Relight function
- Fused protection
- 15 second lockout time
- Communication port
