7520U BECKETT PRIMARY CONTROL A/C READY
7520U BECKETT PRIMARY CONTROL A/C READY
7520U BECKETT PRIMARY CONTROL A/C READY

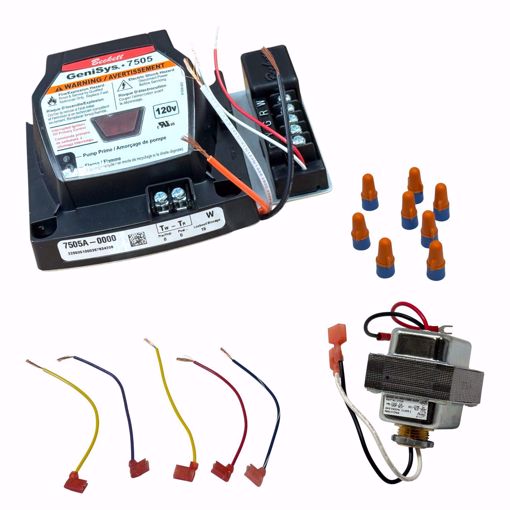

Kit includes
Beckett Primary Control Part Number 7505A0000U
- 120 VAC
- 60 Hz
- Lockout Timing 15 seconds
Features & Benefits
- Thermostat and boiler control compatible
- Customizable pre-time and post-time
- Three status lights for system monitoring and diagnostics
- Welded relay protection with redundant motor relays
- Limited reset and limited recycle
- Sleek, modern design
- Technician Pump Prime mode
The Beckett GeniSys Advanced Burner Control is a 120 Vac primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications. The GeniSys is used with a suitable cad cell fl ame sensor to control the oil burner motor, igniter, and optional solenoid valve. It has 24 Vac thermostat terminals (if applicable) compatible with both mechanical and many power stealing thermostats. It can provide interrupted or intermittent duty ignition, and it has a 15-second lockout time.
Beckett Transformer Part number 21905U
- 120V Primary
- 24 Secondary
- 40 VA
- 50/50Hz
Features & Benefits 7520U
- Includes the “C” terminal needed to power internet connected thermostats
- Mounts under most common primary controls
- Can be used with oil furnaces or oil boilers
- Totally redesigned circuit with DC relays to prevent buzzing and chattering
Replacement Parts
- 7520U (Includes GeniSys 7505 & 51950U) GeniSys 7505 Replacement
- 51950U (Includes 51970U & 21905U) AC Ready Kit
- 51970U Terminal Base only
- 21905U Transformer only
The totally redesigned Beckett A/C Ready Kit makes it easy to add an internet connected thermostat to existing oil heating equipment. The Beckett 51950U A/C Ready Kit adds the “C” terminal needed to power connected thermostats and includes a 40 VA transformer to make sure you have the energy needed to power the connected thermostat of your choice.
The kit is also offered separately with the just the 51970U Terminal Strip and the 21905U Transformer.
The Beckett GeniSys 7505 Oil Burner Control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications. The GeniSys 7505 is used with the GeniSys CAD Cell Flame Detector Kit 7006U to control the oil burner’s motor, igniter, and optional solenoid valve. It has front-mounted, 24 VAC thermostat terminals compatible with both mechanical and many power stealing thermostats. The control operates the burner with interrupted ignition with a 15 second lockout time.
With the GeniSys 52082 Contractor Tool or the new BeckettLink Pro Contractor Tool 7652, the control can be programmed with pre-purge and post-purge timings. For diagnostics, the GeniSys 7505 stores the last 15 cycles.
For high moisture environments, a potted version is offered in the Beckett GeniSys 7575 Oil Burner Control.
This product must be purchased in increments of 1
