12830 BECKETT FIROMATIC B200F 1/2NPT (F) X 1/2NPT (F) INLINE FUSIBLE VALVE 165°F

Manufacturer: Beckett
SKU: BECKETT:12830
Product Availability: 2
$73.99
This product must be purchased in increments of 1
i h

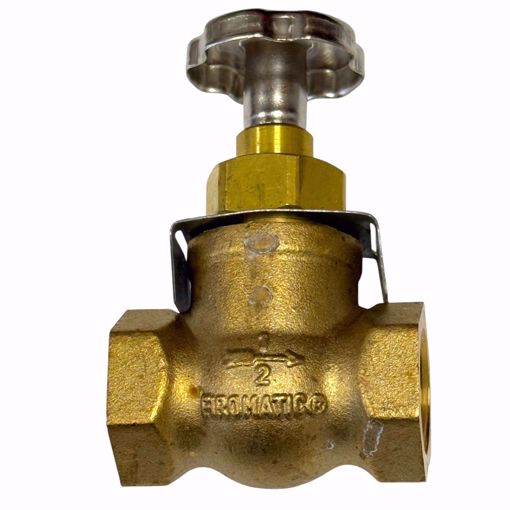

12830 Beckett Firomatic B200F Inline Fusible Valve – 1/2" FPT x 1/2" FPT

📝 Product Overview

The Beckett 12830 Firomatic B200F Inline Fusible Valve is designed to provide fire safety protection for residential and commercial oil heating systems. This 1/2" FPT x 1/2" FPT brass valve automatically shuts off the flow of oil from the tank when exposed to 165°F ambient temperature, reducing the risk of fire damage.

Built with a high-grade brass body and Viton® equivalent seals, this valve is UL/ULC listed and code-compliant under NFPA 31. It is an ideal choice when a fusible tank valve cannot be installed.

Replacement Reference: This valve replaces Beckett 12130, along with 9120-200-0 / 91202000 / B-200-F / B200F.


Key Features

  • 1/2" FPT inlet x 1/2" FPT outlet – standard oil line size

  • Automatic shut-off at 165°F for fire protection

  • Heavy-duty brass construction for durability

  • Double seal washer & o-ring system for reliability

  • Viton® equivalent materials – compatible with No. 2 fuel oil, kerosene, and up to 20% biodiesel blends

  • UL/ULC listed for safety compliance

  • Replaces Beckett 12130, 9120-200-0, 91202000, B-200-F, B200F

  • ✅ Ideal for use when a fusible tank valve cannot be installed


📊 Specifications

FeatureDetails
Part Number 12830
Brand Beckett
Type Inline Fusible Safety Valve
Inlet/Outlet 1/2" FPT x 1/2" FPT
Material Brass
Seal Material Viton® Equivalent
Activation Temp. 165°F
Certification UL/ULC listed
Replaces Beckett 12130, 9120-200-0, 91202000, B-200-F
Applications Heating oil systems, safety shut-off

⚙️ Applications

  • Residential oil heating tank safety shut-off

  • Used in fuel oil, kerosene, and biodiesel blend systems

  • Inline installation when tank-mounted fusible valve cannot be used

  • Replacement for B200F Firomatic fusible valves


⚠️ Common Symptoms (When Replacement is Needed)

  • Fuel not shutting off in high heat conditions

  • Oil leakage at valve connections

  • Worn seals or damaged o-rings

  • Non-compliance with NFPA 31 fire safety codes


Frequently Asked Questions

Q1: What temperature does this valve activate?
➡️ It closes at 165°F, cutting off fuel flow to prevent fire spread.

Q2: Can it handle biodiesel?
➡️ Yes, it is rated for No. 2 fuel oil, kerosene, and up to 20% biodiesel blends.

Q3: Is this required by code?
➡️ Yes, in most jurisdictions following NFPA 31, a fusible safety valve is mandatory for oil heating installations.


🛒 Shopping Tips

  • ✅ Verify your system requires 1/2" FPT connections before ordering

  • ✅ Replace old or leaking valves immediately for safety compliance

  • ✅ Pair with other oil line safety components for a complete fire protection solution

Products specifications
Manufacturer Beckett
