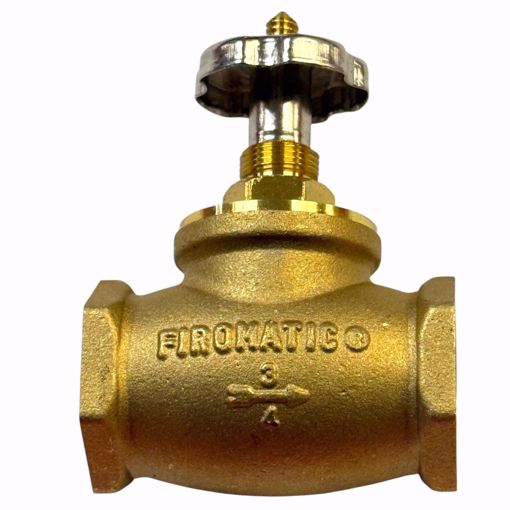

12112 Beckett Firomatic B300F 3/4" NPT(F) x 3/4" NPT(F) Inline Fusible Valve
📝 Product Overview
The Beckett 12112 Firomatic B300F Inline Fusible Valve is a high-quality fire safety valve designed for 3/4" NPT female oil lines. Its robust brass construction with Viton® equivalent seals ensures reliable operation and long service life. The valve is specifically designed to cut off the flow of oil from the tank in the event of a fire, reducing potential damage.
This valve replaces old Firomatic part numbers: 9120-300-0, 91203000, and B-300-F. It is UL/ULC 842 listed and required by code in residential oil heating installations according to NFPA 31.
✅ Key Features
-
✅ 3/4" NPT(F) x 3/4" NPT(F) inline fusible valve
-
✅ Fire safety shut-off reduces fire damage by stopping oil flow
-
✅ High-quality brass design with standard handwheel closure at 165°F
-
✅ Viton® equivalent washers and O-rings resist high temperatures and chemical exposure
-
✅ UL/ULC 842 listed for compliance in the U.S. and Canada
-
✅ Required by NFPA 31 and CSA B139-15 codes for residential installations
-
✅ Embossed flow direction and unique part number identification for easy installation
📊 Specifications
| Feature | Details |
|---|
| Part Number |
12112P |
| Brand |
Beckett |
| Type |
Inline Fusible Valve |
| Size |
3/4" NPT(F) x 3/4" NPT(F) |
| Material |
Brass |
| Seal Material |
Viton® Equivalent |
| Applications |
Residential oil heating installations |
| Safety Listings |
UL/ULC 842 |
| Replaces |
Firomatic 9120-300-0, 91203000, B-300-F |
⚙️ Applications
-
Residential oil heating systems requiring inline fusible safety valves
-
Replacement for worn or non-functioning B300F or old Firomatic valves
-
Installation in inline oil lines where tank-mounted valves are not possible
-
Provides automatic fire protection for fuel-oil systems
⚠️ Common Symptoms (When Replacement is Needed)
-
Oil continues to flow despite high-temperature conditions or fire
-
Valve leaks or fails to shut off
-
Damaged O-rings or washers compromising safety
-
Rust, corrosion, or mechanical wear affecting valve operation
❓ Frequently Asked Questions
Q1: What types of fuel are compatible with this valve?
➡️ Suitable for No. 2 fuel oil, kerosene, and up to 20% biodiesel blend.
Q2: Is this valve required by code?
➡️ Yes, it complies with NFPA 31 and CSA B139-15 for residential oil heating installations.
Q3: Can this valve replace a fusible tank valve?
➡️ Yes, it is ideal for inline installation where tank-mounted fusible valves are not possible.
🛒 Shopping Tips
-
✅ Check your pipe size: Ensure compatibility with 3/4" NPT female connections
-
✅ Inspect existing valve: Replace if leaking, damaged, or non-functional
-
✅ Compliance: Confirm that your installation meets UL/ULC 842 and NFPA 31 codes
-
✅ Flow direction: Align according to embossed arrow for proper function
