12110P BECKETT FIROMATIC B100F 3/8NPT(F) X 3/8" NPT(F) INLINE FUSIBLE VALVE

Manufacturer: Beckett
SKU: BECKETT:12110P
Product Availability: 1
$34.16
This product must be purchased in increments of 1
i h

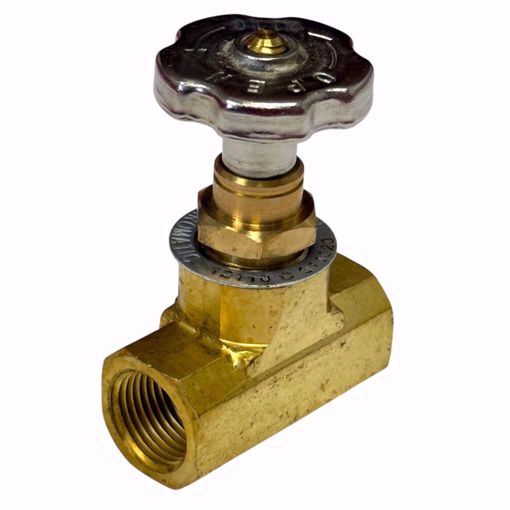

12110P Beckett Firomatic B100F 3/8 NPT(F) x 3/8 NPT(F) Inline Fusible Valve

📝 Product Overview

The Beckett 12110P Firomatic B100F Inline Fusible Valve is a high-quality safety shut-off valve designed for fuel-oil lines. Its straight-valve design ensures reliable operation, automatically cutting off oil flow in the event of a fire to protect your system and property. Constructed from robust brass with a Viton equivalent seal, it resists high temperatures and ensures long-lasting durability.

This valve replaces old Firomatic part numbers: 9120-100-0, 91201000, B-100-F, and B100F.


Key Features

  • 3/8" FPT x 3/8" FPT inline fusible valve

  • Safety shut-off automatically stops oil flow during a fire

  • Straight-valve design for reliable performance

  • Robust brass construction ensures long-lasting durability

  • High-temperature Viton equivalent seal compatible with No. 2 fuel oil, kerosene, and up to 20% biodiesel

  • UL/ULC 842 listed for compliance in the US and Canada

  • ✅ Embossed flow direction and unique part number identification


📊 Specifications

FeatureDetails
Part Number 12110P
Brand Beckett
Type Inline Fusible Valve
Size 3/8" FPT x 3/8" FPT
Material Brass
Seal Material Viton Equivalent
Applications Residential oil heating installations
Safety Listings UL/ULC 842
Replaces Firomatic 9120-100-0, 91201000, B-100-F, B100F

⚙️ Applications

  • Residential oil heating systems requiring fusible safety valves

  • Installation inline with oil tank or burner lines

  • Situations where a Fusible Tank Valve cannot be installed

  • Provides automatic fire protection for fuel-oil systems


⚠️ Common Symptoms (When Replacement is Needed)

  • Oil continues to flow despite fire or high-temperature hazard

  • Valve is leaking or difficult to open/close

  • Damaged or worn seals causing loss of safety function

  • Corrosion or mechanical wear affecting valve operation


Frequently Asked Questions

Q1: What type of fuel can I use with this valve?
➡️ Compatible with No. 2 fuel oil, kerosene, and up to 20% biodiesel blend.

Q2: Is this valve required by code?
➡️ Yes, in residential oil heating installations in accordance with NFPA 31.

Q3: Can this valve be installed in place of a fusible tank valve?
➡️ Yes, this inline fusible valve is ideal where a tank-mounted valve cannot be used.


🛒 Shopping Tips

  • Check pipe size: Ensure your oil line is 3/8" FPT

  • Inspect existing valve: Replace if leaking or damaged

  • Compliance: Make sure your system installation meets UL/ULC and NFPA requirements

  • Flow direction: Align valve according to the embossed arrow for proper operation

Products specifications
Manufacturer Beckett
