24V UNIVERAL INTERMITTENT PILOT IGNITION CONTROL
24V UNIVERAL INTERMITTENT PILOT IGNITION CONTROL
C610U-1C 24V UNIVERAL INTERMITTENT PILOT IGNITION CONTROL
C610U-1C
Default Settings
Trial for ignition: 3 @ 30 seconds
Pre-Purge: 0 seconds
Retry: 0 minutes
Inter-purge: 15 seconds
Flame Sense: Internal (Local) or External (Remote)
Damper: With or Without automatic vent damper
Note: DIP Switch selectable is preprogrammed with 28 of the most popular timings.
Specifications
Input Power: 24 VAC (18 to 30 VAC 50/60 Hz)
Input Current drain: 300mA @ 24VAC with pilot relays and gas energized
Main Gas Valve: 2.0A maximum cont.
Pilot Gas Valve: 2.0A maximum cont.
Operating Temperature: -40° to 176°F (-40° to 80°C)
Flame Sensitivity: 0.4µA minimum
Type of gases: Natural, LP, or other manufactured
Spark Rate: 24VAC – 3o sparks per second
Moisture Resistance: Conformal coated to operate non-condensing 95% R.H. PC board must be protected from direct exposure to water

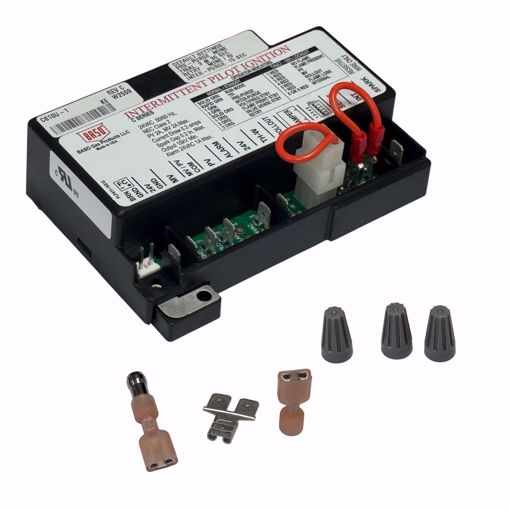

The C610U is a dual microprocessor based intermittent pilot ignition control to provide reliable software control of all timings, ignition sequence, flame monitoring, diagnostic LED for trouble shooting, and safety shut-off for intermittent applications. This control replaces many of the BASO, Johnson Controls, Honeywell, Fenwal, White Rodgers, ICM and Robertshaw intermittent pilot gas ignition/flame relay controls. Accessories include a Rajah (spark plug) male to female 1/4 inch terminal and wire nuts.
