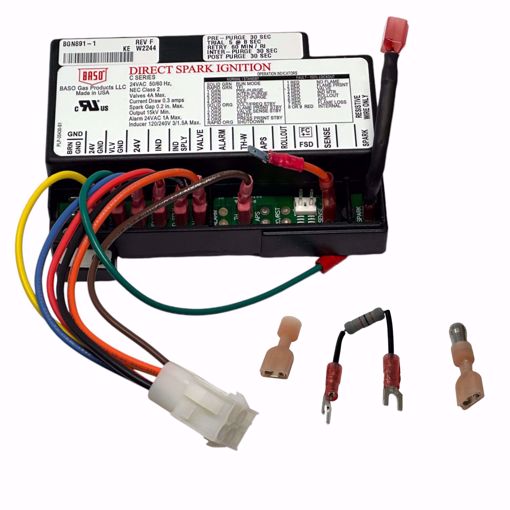

BASO BGN891-1 REPLACEMENT MODULE FOR LENNOX PULSE FURNACE

Manufacturer: Baso

BGN891-1C BASO BGN891-1 REPLACEMENT MODULE FOR LENNOX PULSE FURNACE BGN891-1C - Retry Minutes 60 Min - Pre-Purge 30 Seconds - Trial for Ignition Seconds 5 @ 8 Seconds - Inter-Purge Seconds 30 Seconds - Post-Purge Seconds 30 Seconds - 24V - 50/60Hz - Valves 4A Max - Current Draw 0.3 Amps - Spark Gap 0.2 in Max - Output 15kV Min - Alarm 24V 1A Max - Inducer 120/240V, 3/1.5A Max The BASO BGN891 (black) Ignition Control is a direct replacement for Natural Gas or Propane ovens which have a Johnson Controls G891 (blue) Pulse Ignition Control. The BASO BGN891-1 24-Volt Direct Spark ignition was designed to replace the G891TCA Series ignition used in the Lennox Pulse furnace. The 6-pin adapter plug is arranged so this becomes a plug and-play replacement for the service field. Other harness adapters are added for older models that may need the additional quick connection to make replacement a snap

SKU: BASO:BGN891-1C

Product Availability: 1

$213.46

This product must be purchased in increments of 1

Qty:

i h

BGN891-1C BASO BGN891-1 REPLACEMENT MODULE FOR LENNOX PULSE FURNACE
BGN891-1C

- Retry Minutes 60 Min
- Pre-Purge 30 Seconds
- Trial for Ignition Seconds 5 @ 8 Seconds
- Inter-Purge Seconds 30 Seconds
- Post-Purge Seconds 30 Seconds
- 24V
- 50/60Hz
- Valves 4A Max
- Current Draw 0.3 Amps
- Spark Gap 0.2 in Max
- Output 15kV Min
- Alarm 24V 1A Max
- Inducer 120/240V, 3/1.5A Max

The BASO BGN891 (black) Ignition Control is a direct replacement for Natural Gas or Propane ovens which have a Johnson Controls G891 (blue) Pulse Ignition Control.

The BASO BGN891-1 24-Volt Direct Spark ignition was designed to replace the G891TCA Series
ignition used in the Lennox Pulse furnace. The 6-pin adapter plug is arranged so this becomes a plug and-play replacement for the service field. Other harness adapters are added for older models that may need the additional quick connection to make replacement a snap

Products specifications

Manufacturer	Baso
