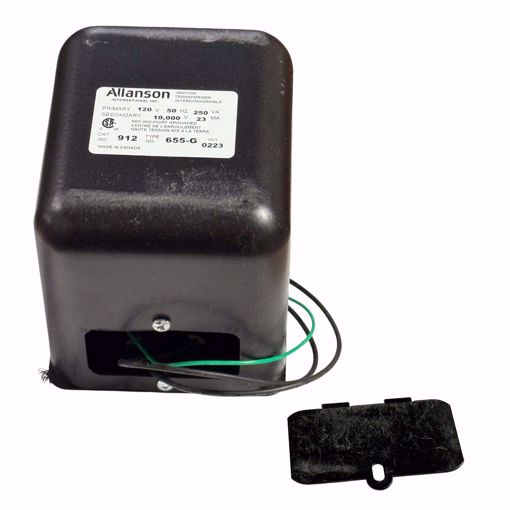

🔥 Allanson 912-655 OEM Replacement Transformer – Power Flame, Large Can Series

The Allanson 912-655 Transformer is an OEM replacement transformer with base plate designed for Power Flame oil burners. Engineered for constant-duty applications, this double-pole ferromagnetic transformer provides a reliable ignition source for commercial and industrial oil systems.

Built for durability and high performance, the 912-655 features a mid-point grounded 10,000-volt secondary, internal wiring compartment, and large can construction to meet the demanding needs of industrial and commercial burners.

✅ Key Features

• ✅ OEM replacement transformer for Power Flame oil burners

• ✅ Double-pole ferromagnetic design for constant-duty operation

• ✅ Mid-point grounded 10,000 V secondary for reliable ignition

• ✅ Internal wiring compartment with Rajah connector for HV terminal

• ✅ Large can series for enhanced durability

• ✅ Designed for commercial and industrial oil applications

• ✅ Input: 120V, 50 Hz, 23 mA

• ✅ Easy base plate mounting for secure installation

📊 Technical Specifications

⚠️ Common Symptoms / When to Replace

• ❌ Burner fails to ignite consistently

• ❌ Visible sparks or arcing at ignition terminal

• ❌ Burned, cracked, or damaged transformer housing

• ❌ Irregular voltage output or low secondary voltage

• ❌ Intermittent or complete failure of the ignition system

❓ Frequently Asked Questions (FAQ)

Q: Is this transformer compatible with all Power Flame burners?

• It is compatible with Power Flame models requiring a large can series transformer with mid-point grounded 10,000 V secondary.

Q: What is the purpose of the mid-point grounding?

• Mid-point grounding ensures safety and reliable ignition performance while minimizing risk of electrical shock or shorting.

Q: Can this transformer be used for residential oil burners?

• It is primarily designed for commercial and industrial applications. Residential use may vary depending on burner specifications.

Q: How is it mounted?

• The transformer comes with a base plate for secure mounting in the burner assembly.

Q: What type of terminal connector does it use?

• Rajah connector for high-voltage terminal.

🛠️ Installation & Maintenance Tips

• 🧰 Ensure power is disconnected before servicing the burner.

• ⚙️ Mount securely using the base plate provided.

• 🔌 Connect HV terminal using the Rajah connector provided.

• 🔄 Inspect periodically for corrosion, arcing, or insulation wear.

• 🔧 Replace immediately if secondary voltage output is irregular or ignition is inconsistent.
