542-PF ALLANSON Power Flame Ignition Transformer – 120V Primary, 10,000V Secondary | Single Pole

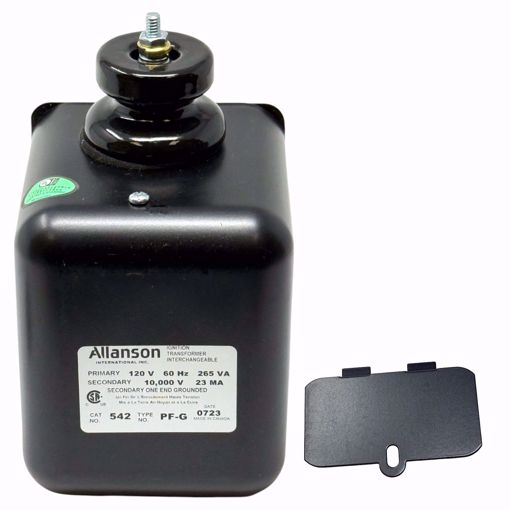

The 542-PF ALLANSON Ignition Transformer is a high-performance, single-pole ferromagnetic transformer designed for constant-duty gas burner applications. With a 120V primary input and 10,000V secondary output, this transformer provides a reliable ignition source for Power Flame gas burners in commercial, residential, and industrial settings. Built to burner manufacturer specifications, it runs cooler, quieter, and safer, while meeting American and European EMI/RFI noise emission standards.
🔑 Key Features
✅ Burner Manufacturer: Power Flame
✅ Burner Type: Power Flame
✅ Primary Voltage: 120V AC, Input Frequency 60Hz
✅ Current: 23 mA
✅ Secondary Voltage: 10,000V
✅ Poles: Single Pole
✅ Grounding: One End Ground
✅ HV Terminal: 1/4-20 Stud for secure high-voltage connection
✅ Junction Box: Internal for clean installation
✅ Designed with high-temperature wire for durability
✅ Runs cooler, quieter, and safer on all types of burners
✅ Designed according to burner manufacturer specifications
✅ Meets American and European EMI/RFI noise emission standards
✅ Constant-duty design for gas burner applications
📊 Technical Specifications
| Specification | Details |
|---|
| Model |
542-PF |
| Burner Manufacturer |
Power Flame |
| Burner Type |
Power Flame |
| Input Voltage |
120V AC |
| Current |
23 mA |
| Grounding |
One End Ground |
| Secondary Voltage |
10,000V |
| Input Frequency |
60Hz |
| HV Terminal |
1/4-20 Stud |
| Junction Box |
Internal |
| Poles |
Single Pole |
| Wire Type |
High-temperature wire |
⚠️ Common Symptoms Indicating Transformer Replacement
-
Burner fails to ignite or produces weak spark
-
Inconsistent ignition performance
-
Excessive heat or unusual noise from transformer
-
Visible damage or insulation wear
🛒 Shopping Tips
-
Confirm Compatibility: Designed for Power Flame gas burners requiring 10,000V secondary and one end grounding.
-
Proper Installation: Use one-end grounding and 1/4-20 stud HV terminal correctly for safe operation.
-
Constant Duty: Designed for continuous operation without overheating.
-
Noise Compliance: Meets EMI/RFI standards for safe and quiet operation.
-
Poles: Single Pole for Power Flame gas burners.
❓ Frequently Asked Questions (FAQ)
Q1: What burners can this transformer be used with?
A: Designed specifically for Power Flame gas burners.
Q2: Is this a single-pole or double-pole transformer?
A: This is a single-pole transformer.
Q3: What is the input and output voltage?
A: Input: 120V AC, Output: 10,000V.
Q4: What type of HV terminal does it use?
A: 1/4-20 Stud for secure high-voltage connection.
Q5: Can it be used for constant-duty operation?
A: Yes, it’s designed for continuous operation without overheating.
Q6: Does it meet EMI/RFI standards?
A: Yes, compliant with American and European noise emission standards.
Q7: What type of junction box does it use?
A: Internal junction box for clean and convenient installation.
