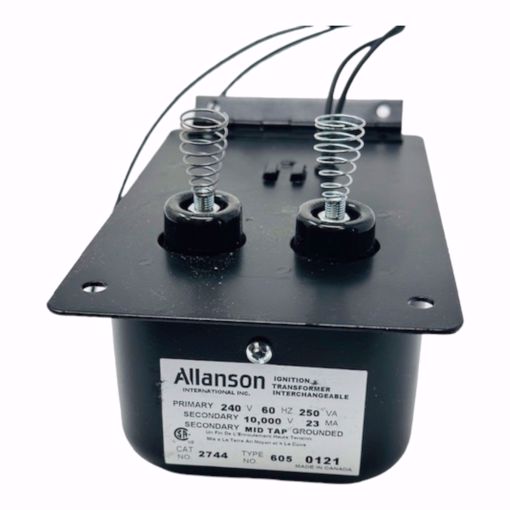

2744-605 ALLANSON Beckett S Transformer – 220V Primary, 10,000V Secondary | Double Pole

The 2744-605 ALLANSON Beckett S Transformer is a high-performance, double-pole ferromagnetic transformer designed for constant-duty oil burner applications. With a 220V primary input and 10,000V secondary output, this transformer provides reliable ignition power for commercial, residential, and industrial Beckett S oil burners. Built to burner manufacturer specifications, it runs cooler, quieter, and safer, while meeting American and European EMI/RFI noise emission standards.

Functional, durable, and designed for dependable power on all types of Beckett S oil burners.

🔑 Key Features

✅ Burner Manufacturer: Beckett
✅ Application: Oil Burner
✅ Burner Type: S
✅ Primary Voltage: 220V AC, Input Frequency 60Hz
✅ Current: 23 mA
✅ Secondary Voltage: 10,000V
✅ Grounding: Mid Point Ground
✅ HV Terminal: Large Spring Contact for secure high-voltage connection
✅ Hinge Location: End Hinge for easy installation
✅ Poles: Double Pole
✅ Can Size: Small Can Series
✅ High-temperature wire for enhanced durability and safety
✅ Runs cooler and quieter on all types of burners
✅ Designed according to burner manufacturer specifications
✅ Meets American and European EMI/RFI noise emission standards
✅ Dependable, constant-duty power for oil burner applications

📊 Technical Specifications

⚠️ Common Symptoms Indicating Transformer Replacement

• Burner fails to ignite or produces weak spark

• Inconsistent ignition performance

• Excessive heat or unusual noise from transformer

• Visible damage or insulation wear

🛒 Shopping Tips

• Confirm Compatibility: Ensure your burner is a Beckett S oil burner requiring a 220V primary and 10,000V secondary transformer.

• Proper Installation: Use mid-point grounding and large spring HV terminal correctly for safe operation.

• Constant Duty: Designed for continuous operation without overheating.

• Noise Compliance: Meets EMI/RFI standards for safe and quiet operation.

• Can Size: Small Can Series, compatible with Beckett S burners.

❓ Frequently Asked Questions (FAQ)

Q1: What type of burners can this transformer be used with?
A: Designed specifically for Beckett S oil burners.

Q2: Is this a single-pole or double-pole transformer?
A: This model is a double-pole transformer.

Q3: What is the input and output voltage?
A: Input: 220V AC, Output: 10,000V.

Q4: What type of HV terminal does it use?
A: Large spring contact for secure high-voltage connection.

Q5: What is the grounding type?
A: Mid Point Ground for proper installation.

Q6: Can it be used for constant-duty operation?
A: Yes, it’s designed for continuous operation without overheating.

Q7: Does it meet EMI/RFI standards?
A: Yes, compliant with American and European noise emission standards.
