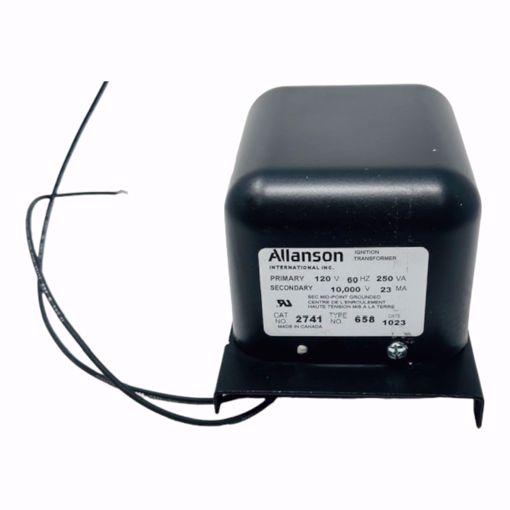

2741-658 ALLANSON IGNITION TRANSFORMER FOR BECKETT AFII 🔥
📘 Product Overview
The Allanson 2741-658 is a double-pole ignition transformer engineered specifically for Beckett AFII oil burners.
It delivers a powerful and consistent 10,000V spark for reliable burner ignition and smooth operation in oil heating systems.
This model is a direct replacement for Webster 3-32AB-BAF and designed to meet both American and European noise emission standards, ensuring quiet and interference-free performance. Built with high-temperature wiring and ferromagnetic core technology, it provides dependable ignition power under demanding operating conditions.
⚠️ Note: Will not fit Beckett A, AF, or AFG burners — for AFII models only.
✅ Key Features
-
✅ Designed exclusively for Beckett AFII oil burners
-
✅ Provides strong 10,000V ignition output for reliable starts
-
✅ Runs cooler, quieter, and safer than conventional transformers
-
✅ Meets EMI and RFI emission standards (American & European)
-
✅ High-temperature wiring for enhanced heat resistance
-
✅ Durable single porcelain design for improved longevity
-
✅ Mid-point grounded secondary for safety and stable operation
-
✅ Direct replacement for Webster 3-32AB-BAF
-
✅ Engineered to burner manufacturer specifications
⚙️ Technical Specifications
| Specification | Details |
|---|
| Model Number |
2741-658 |
| Manufacturer |
Allanson |
| Application |
Oil Burners |
| Compatible Burner |
Beckett AFII |
| Input Voltage |
120V AC |
| Frequency |
60 Hz |
| Secondary Voltage |
10,000V |
| Output Current |
23 mA |
| Poles |
Double |
| VA Rating |
250 VA |
| Grounding |
Mid-Point Ground |
| High Voltage Terminal |
1/4" Push-On Cable Connections |
| Operating Temperature Range |
High Temp Rated |
| Mount Type |
Base Plate (No Wiring Compartment) |
| Replacement For |
Webster 3-32AB-BAF |
| Country of Origin |
USA / Canada |
🧰 Tech Section
The Allanson 2741-658 Transformer is a ferromagnetic ignition unit that uses an iron-core magnetic circuit to generate high-voltage pulses for burner ignition.
This design provides:
-
Stable spark voltage for consistent ignition.
-
Reduced electrical noise interference (meets EMI/RFI standards).
-
Cooler operation, preventing premature insulation breakdown.
Its mid-point grounding offers safer electrical balance and minimizes short-to-ground failures often seen in older designs.
⚠️ Common Symptoms of a Failing Transformer
-
Burner fails to ignite or intermittent ignition
-
Weak or no visible spark
-
Frequent burner lockouts
-
Audible humming but no ignition
-
Blackened or carbon-tracked porcelain insulator
-
Excessive noise or overheating
❓ FAQ
Q: Can this transformer fit a Beckett AFG?
A: ❌ No — it’s only designed for Beckett AFII models.
Q: What’s the voltage output?
A: 10,000V secondary voltage with 23 mA output current.
Q: Does this transformer include mounting hardware?
A: It mounts via base plate; existing screws can typically be reused.
Q: What’s the main benefit over older transformer designs?
A: The 2741-658 runs cooler, quieter, and provides superior spark consistency while reducing EMI noise.
🛒 Shopping Tips
-
✅ Confirm your burner model — fits Beckett AFII only.
-
✅ Replace both the transformer and electrodes if ignition issues persist.
-
✅ Keep spare transformers for critical or multi-burner systems.
-
✅ Use OEM-quality parts to ensure reliable ignition and safety.
-
✅ Periodically inspect connections for corrosion or insulation damage
