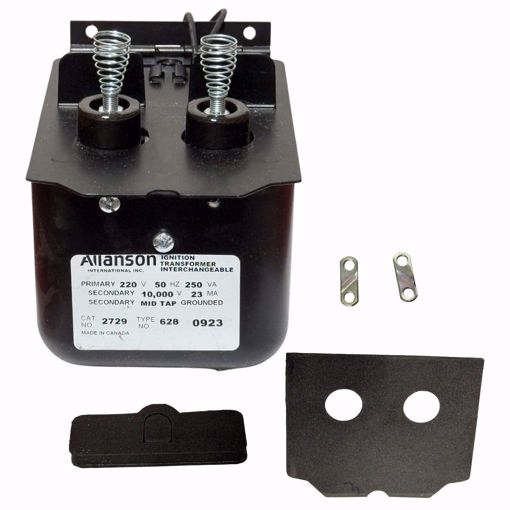

2729-628G ALLANSON Beckett Ignition Transformer – 220V Primary, 10,000V Secondary | Double Pole

The 2729-628G ALLANSON Beckett Ignition Transformer is a high-performance, double-pole ferromagnetic transformer designed for constant-duty oil burner applications. With a 220V primary input and 10,000V secondary output, this transformer provides a reliable ignition source for Beckett A, AF, and AFG oil burners in commercial and industrial settings. Built to burner manufacturer specifications, it ensures safe, efficient, and long-lasting operation.

This transformer replaces the 2729-628A and is also compatible with the non-“G” version used for Carlin 200, 201, and 500 burners. There is no functional difference between the “G” and non-“G” models—the “G” simply identifies the variation for Beckett burners.

🔑 Key Features

✅ Burner Manufacturer: Beckett
✅ Burner Types: A, AF, AFG
✅ Primary Voltage: 220V AC, Input Frequency 50Hz
✅ Current: 23 mA
✅ Secondary Voltage: 10,000V
✅ Poles: Double Pole
✅ Grounding: Mid Point Ground
✅ HV Terminal: Large Spring Contact for secure high-voltage connection
✅ Hinge Location: End Hinge for easy installation
✅ Can Size: Small Can Series
✅ Designed with high-temperature wire for durability
✅ Runs cooler, quieter, and safer on all types of burners
✅ Meets American and European EMI/RFI noise emission standards
✅ Constant-duty design for commercial and industrial oil applications

📊 Technical Specifications

⚠️ Common Symptoms Indicating Transformer Replacement

• Burner fails to ignite or produces weak spark

• Inconsistent ignition performance

• Excessive heat or unusual noise from transformer

• Visible damage or insulation wear

🛒 Shopping Tips

• Confirm Compatibility: Designed for Beckett A, AF, and AFG burners; also compatible with the non-“G” 2729-628 for Carlin 200, 201, and 500 burners.

• Proper Installation: Use mid-point grounding and large spring HV terminal correctly for safe operation.

• Constant Duty: Designed for continuous operation without overheating.

• Noise Compliance: Meets EMI/RFI standards for safe and quiet operation.

• Can Size: Small Can Series, compatible with Beckett burners.

❓ Frequently Asked Questions (FAQ)

Q1: What does the “G” in 2729-628G mean?
A: The “G” identifies a specific variation for Beckett A, AF, and AFG burners. Functionally, it is identical to the non-“G” version used for Carlin burners.

Q2: What type of burners is this transformer compatible with?
A: Beckett A, AF, and AFG burners; also compatible with Carlin 200, 201, 500 burners.

Q3: Is this a single-pole or double-pole transformer?
A: This is a double-pole transformer.

Q4: What is the input and output voltage?
A: Input: 220V AC, Output: 10,000V.

Q5: What type of HV terminal does it use?
A: Large Spring Contact for secure high-voltage connection.

Q6: Can it be used for constant-duty operation?
A: Yes, it’s designed for continuous operation without overheating.

Q7: Does it meet EMI/RFI standards?
A: Yes, compliant with American and European noise emission standards.
