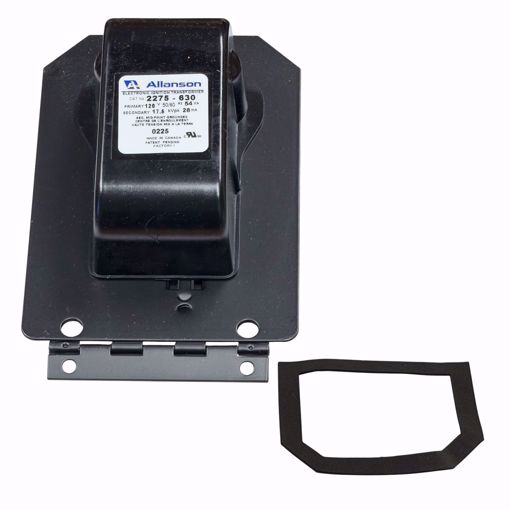

2275-630 Allanson Carlin New Style Igniter – 100/101 EZ-1, EZ-2 & EZ-3 Burners
Product Overview
The Allanson 2275-630 igniter is a high-reliability ignition source for oil-fired burners, designed for commercial, residential, and industrial applications. It is compatible with Carlin 100, 101, 99, and Card Miser burners, and is a direct replacement for Grainger 23M550. Built for constant duty, this ignitor delivers stable ignition under brownout conditions while remaining energy-efficient and low-maintenance.
✅ Key Features
-
✔️ Compatible with Carlin 100, 101, 99, and Card Miser oil burners
-
✔️ Direct replacement for Grainger 23M550
-
✔️ Input voltage: 120V, 50/60Hz
-
✔️ Grounding: Mid-point ground
-
✔️ Current: 28mA; Secondary voltage: 17.5 kVpk
-
✔️ Double-pole ignitor with spring clip HV terminal
-
✔️ End hinge design for easy installation
-
✔️ Eliminates need for other mounting plates, reducing inventory needs
-
✔️ Reliable operation under brownout conditions
-
✔️ Quick & easy to replace
-
✔️ Energy-efficient with low operating temperature
-
✔️ Ships complete with all required hardware
-
✔️ Meets American and European noise emission standards for EMI and RFI protection
-
✔️ Durable under extreme conditions – Storage: -40°C to 80°C, Operating: -30°C to 40°C, Relative Humidity: 90%
-
✔️ Adjustable loading air gap: 1/16″ – 3/16″
📊 Specifications
| Specification | Details |
|---|
| Part Number |
2275-630 |
| Manufacturer |
Allanson |
| Burner Manufacturer |
Carlin |
| Burner Types |
100, 101, 99, Card Miser |
| Compatible EZ Series |
EZ-1, EZ-2, EZ-3 |
| Replacement |
Grainger 23M550 |
| Input Voltage |
120V |
| Input Frequency |
50/60 Hz |
| Current |
28 mA |
| Secondary Voltage |
17.5 kVpk |
| Grounding |
Mid-point ground |
| HV Terminal |
Spring Clip Contact |
| Hinge Location |
End Hinge |
| Poles |
Double |
| Operating Temperature |
-30°C to 40°C |
| Storage Temperature |
-40°C to 80°C |
| Operating Relative Humidity |
90% |
| Loading Air Gap |
1/16″ – 3/16″ |
| Dimensions (L x W x H) |
4.06″ x 4.92″ x 2.91″ |
| Application |
Oil-fired burners |
⚠️ Common Symptoms Indicating Replacement
-
Burner fails to ignite or has inconsistent ignition
-
Clicking or sparking without ignition
-
Burner lockouts or repeated safety shutdowns
-
Visible wear or damage on the ignitor tip
-
Reduced flame reliability or delayed ignition
❓ Frequently Asked Questions (FAQ)
Q: Which burners is this ignitor compatible with?
A: It works with Carlin 100, 101, 99, and Card Miser burners, including EZ-1, EZ-2, and EZ-3 models.
Q: Can it replace the Grainger 23M550?
A: Yes, it is a direct replacement.
Q: What is the required input voltage and current?
A: 120V, 28 mA, 50/60 Hz.
Q: How do I adjust the loading air gap?
A: The recommended air gap is 1/16″ to 3/16″ to ensure proper ignition.
Q: Is this ignitor durable under extreme conditions?
A: Yes, it operates between -30°C to 40°C and can be stored safely from -40°C to 80°C, with up to 90% relative humidity.
🛒 Shopping Tips
-
Confirm burner model and type before ordering
-
Inspect the existing ignitor for wear or damage before replacement
-
Ensure air gap adjustment is within the recommended 1/16″ – 3/16″ range
-
Ideal for residential, commercial, or industrial oil burners
-
Ships complete with required hardware for quick installation
