1196-S ALLANSON 240V Primary / 6000V Secondary Ignition Transformer – Single Pole | Gas

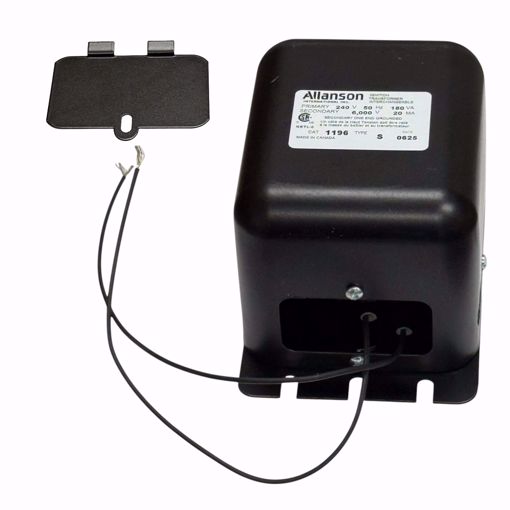

The 1196-S ALLANSON Transformer is a high-quality, single-pole ignition transformer designed for constant-duty gas burner applications. Specifically engineered for Gordon Piatt burners, it delivers a 240V primary input with a 6000V secondary output, ensuring reliable ignition. With high-temperature wire, single porcelain construction, and internal junction box, this transformer operates cooler, quieter, and safer, while meeting American and European EMI/RFI noise emission standards.
🔑 Key Features
✅ Application: Gas
✅ Burner Manufacturer: Gordon Piatt
✅ Burner Type: Gordon Piatt
✅ Primary Voltage: 240V AC
✅ Current: 20 mA
✅ Secondary Voltage: 6000V
✅ Poles: Single Pole
✅ Grounding: One End Ground
✅ Input Frequency: 50Hz
✅ HV Terminal: Thumb Screw
✅ Junction Box: Internal
✅ Built with high-temperature wire for durability
✅ Runs cooler, quieter, and safer
✅ Meets American and European EMI/RFI standards
✅ Single porcelain design for safe high-voltage operation
✅ Dependable power for constant-duty applications
📊 Technical Specifications
| Specification | Details |
|---|
| Model |
1196-S |
| Application |
Gas |
| Burner Manufacturer |
Gordon Piatt |
| Burner Type |
Gordon Piatt |
| Primary Voltage |
240V AC |
| Current |
20 mA |
| Secondary Voltage |
6000V |
| Poles |
Single Pole |
| Grounding |
One End Ground |
| Input Frequency |
50Hz |
| HV Terminal |
Thumb Screw |
| Junction Box |
Internal |
| Duty |
Constant Duty |
⚠️ Common Symptoms Indicating Transformer Replacement
-
Burner fails to ignite or produces weak spark
-
Inconsistent ignition performance
-
Excessive heat or unusual noise from transformer
-
Visible wear or insulation damage
🛒 Shopping Tips
-
Check Compatibility: Designed specifically for Gordon Piatt gas burners.
-
Constant Duty: Suitable for continuous operation in commercial, residential, and industrial systems.
-
Safe & Efficient: High-temperature wire and single porcelain design ensure safe, quiet operation.
