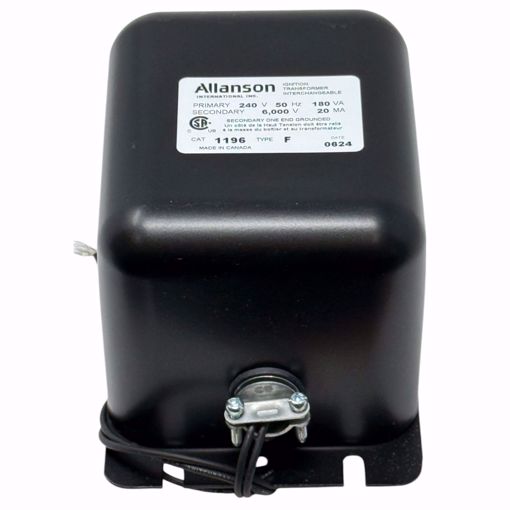

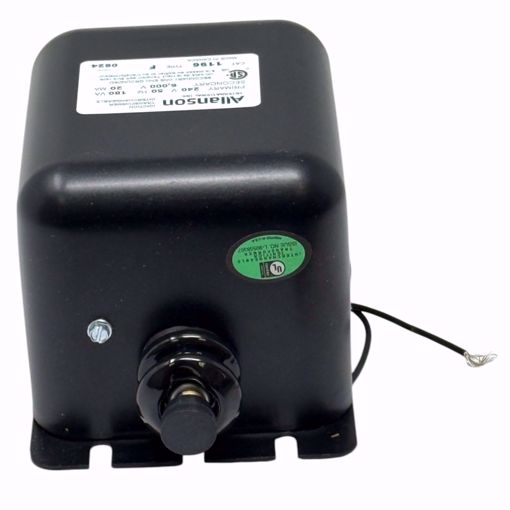

1196-F ALLANSON Type F Ignition Transformer β 240V Primary, 6000V Secondary
The 1196-F ALLANSON Type F Ignition Transformer is a high-performance, single-pole ferromagnetic transformer designed for constant-duty gas ignition applications. With a 240V primary input and 6000V secondary output, it provides a reliable, consistent ignition source for commercial, residential, and industrial gas burners. Built to burner manufacturer specifications, this transformer runs cooler, quieter, and safer, while meeting American and European EMI/RFI noise emission standards.
Functional, durable, and designed for dependable power on all types of gas burners.
π Key Features
β
Primary Voltage: 240V AC, Input Frequency 50Hz
β
Current: 20 mA
β
Secondary Voltage: 6000V, ideal for reliable gas ignition
β
Poles: Single Pole, Single Porcelain Design
β
Grounding: One End Ground
β
HV Terminal: Thumb Screw for secure high-voltage connection
β
High-temperature wire for enhanced durability and safety
β
Runs cooler and quieter on all types of burners
β
Designed according to burner manufacturer specifications
β
Meets American and European EMI/RFI noise emission standards
β
Dependable, constant-duty power for commercial, residential, and industrial applications
π Technical Specifications
Specification | Details |
Model |
1196-F |
Application |
Gas Ignition |
Input Voltage |
240V AC |
Current |
20 mA |
Grounding |
One End Ground |
Secondary Voltage |
6000V |
Input Frequency |
50Hz |
HV Terminal |
Thumb Screw |
Poles |
Single Pole |
Wire Type |
High-temperature wire |
Compliance |
EMI/RFI noise emission standards |
