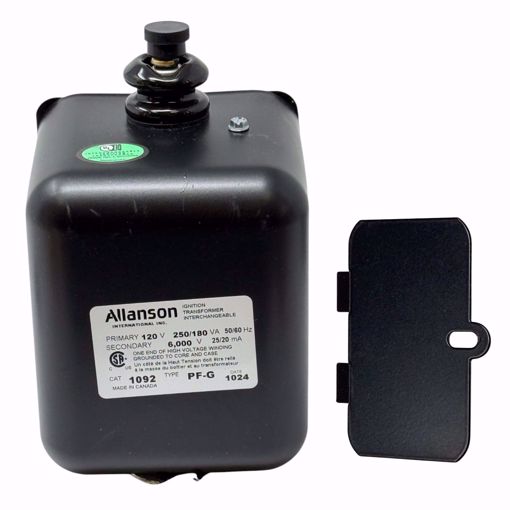

POWERFLAME 1092-PF-G 6000V 1POLE IGNITION TRANSFORMER

Manufacturer: Allanson

- Application GAS - Burner Manufacturer POWER FLAME - Burner Type POWER FLAME - Input Voltage. 120V - Current 25/20mA - Grounding One End Ground - Secondary Voltage 6,000V - Input Frequency 50/60Hz - Hv Terminal Thumb Screw - Junction Box INTERNAL - Poles Single Features - Designed with high temperature wire - 1/4-20 x 1″ Mounting Studs, primary with three wires, one ground wire. - Runs cooler, quieter and safer on all types of burners. - Designed to burner manufacturer’s specifications - Meets American and European noise emission standards offering superior EMI and RFI protection. - Single porcelain designs - Dependable Power Replaces Webster 612-6A056, 612-6AO56, 612-6A04, 612-6AO4, PowerFlame 320000, 320001, Dongan A06-SA6PF REPLACES GRAINGER 23M559 1092-PF-G 1092-PF-G Replaces 1092-PF

SKU: ALLANSON:1092-PF

Product Availability: 8

$87.96

This product must be purchased in increments of 1

Qty:

i h

- Application GAS
- Burner Manufacturer POWER FLAME
- Burner Type POWER FLAME
- Input Voltage. 120V
- Current 25/20mA
- Grounding One End Ground
- Secondary Voltage 6,000V
- Input Frequency 50/60Hz
- Hv Terminal Thumb Screw
- Junction Box INTERNAL
- Poles Single

Features
- Designed with high temperature wire
- 1/4-20 x 1″ Mounting Studs, primary with three wires, one ground wire.
- Runs cooler, quieter and safer on all types of burners.
- Designed to burner manufacturer’s specifications
- Meets American and European noise emission standards offering superior EMI and RFI protection.
- Single porcelain designs
- Dependable Power

Replaces Webster 612-6A056, 612-6AO56, 612-6A04, 612-6AO4, PowerFlame 320000, 320001, Dongan A06-SA6PF REPLACES GRAINGER 23M559

1092-PF-G
1092-PF-G Replaces 1092-PF

Products specifications

Voltage	120 Volt AC
Secondary Voltage	6,000 Volts
Hertz	50/60 Hz
Burner Manufacturer	POWER FLAME
