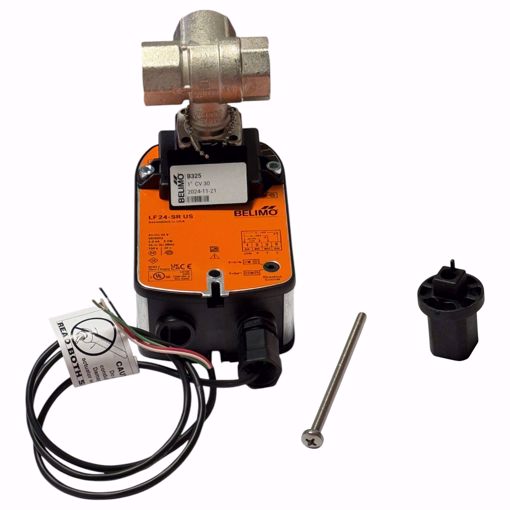

B325+LF24-SR BELIMO 1 3-WAY BALL VALVE WITH 24V S/R PROP MOTOR

Manufacturer: Belimo

B325+LF24-SR BELIMO 1 3-WAY BALL VALVE WITH 24V S/R PROP MOTOR Valve Specifications - Body Pattern 3-Way - 30Cv - Fluid Chilled or hot water, up to 60 % glycol - Body Pressure Rating 600 PSI - Valve Size 1" - Valve body Nickel-Plated Brass Body Actuator Specifications - 24V AC/DC - Power Consumption (Running) 2.5 Watts - Power Consumption (Holding) 1 Watts - Power Consumption For Wire Sizing 5 VA - IP54 - NEMA 2 - 35 in-lb Torque - Spring Return - Running Time (150s) @ 90 degrees - 2 to 10 VDC Control Input - Electrical Lead 18" GA Plenum cable with 1/2" NPT conduit connector

SKU: BELIMO:B325+LF24-SR

Product Availability: Out of stock

$524.16

This product must be purchased in increments of 1

Qty:

i h

B325+LF24-SR BELIMO 1 3-WAY BALL VALVE WITH 24V S/R PROP MOTOR

Valve Specifications
- Body Pattern 3-Way
- 30Cv
- Fluid Chilled or hot water, up to 60 % glycol
- Body Pressure Rating 600 PSI
- Valve Size 1"
- Valve body Nickel-Plated Brass Body

Actuator Specifications
- 24V AC/DC
- Power Consumption (Running) 2.5 Watts
- Power Consumption (Holding) 1 Watts
- Power Consumption For Wire Sizing 5 VA
- IP54
- NEMA 2
- 35 in-lb Torque
- Spring Return
- Running Time (150s) @ 90 degrees
- 2 to 10 VDC Control Input
- Electrical Lead 18" GA Plenum cable with 1/2" NPT conduit connector

Products specifications

Manufacturer	Belimo
